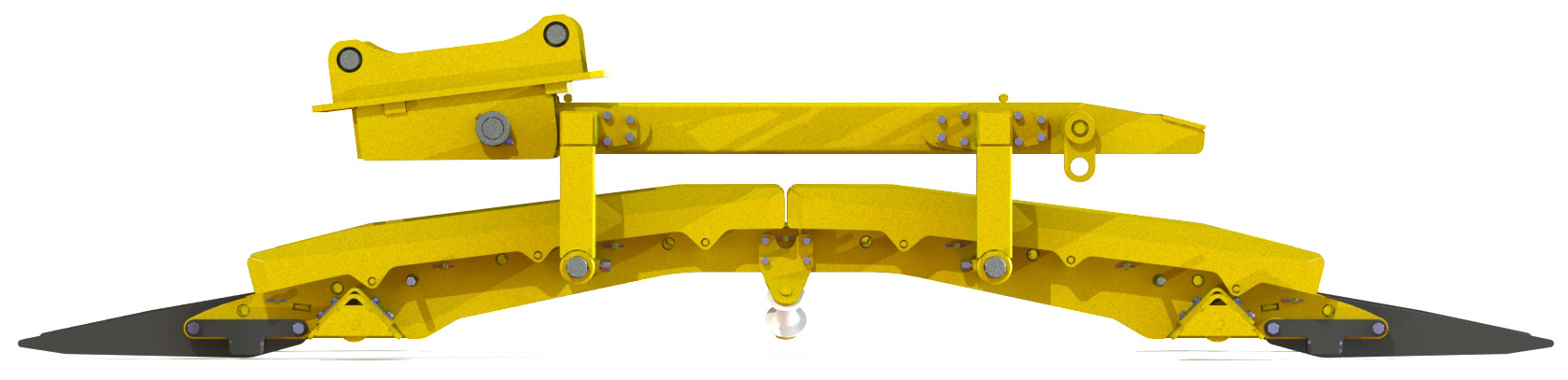

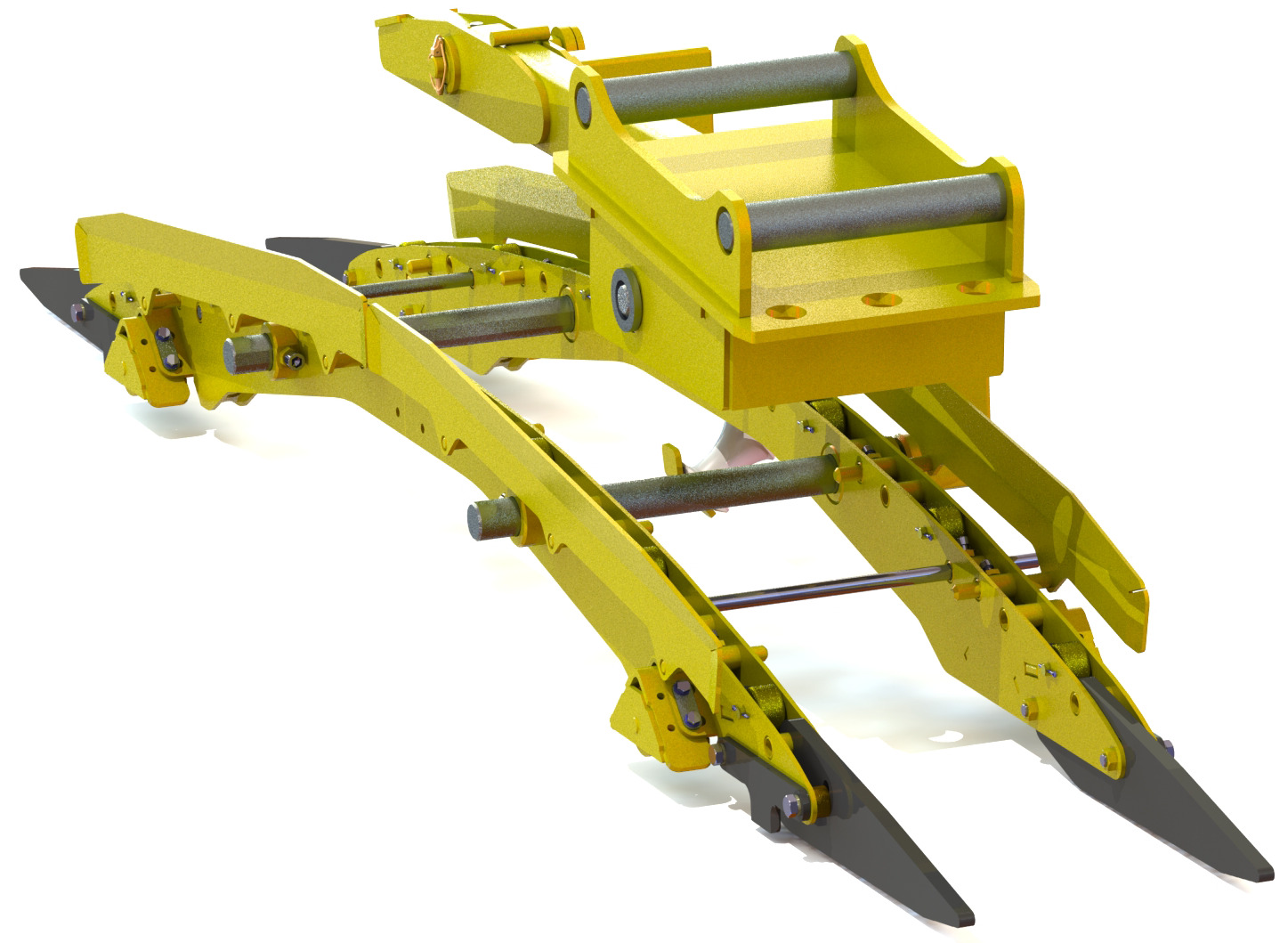

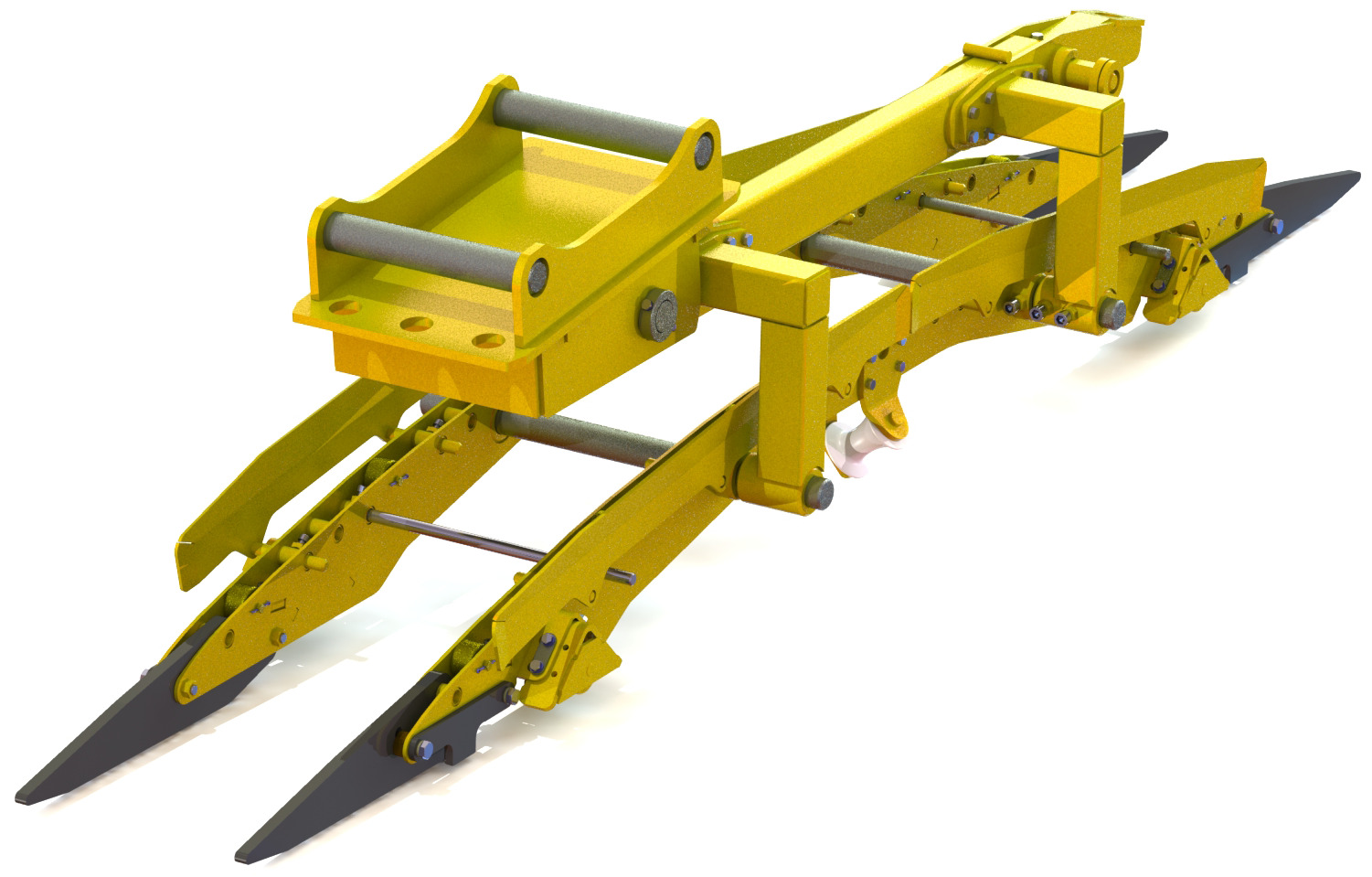

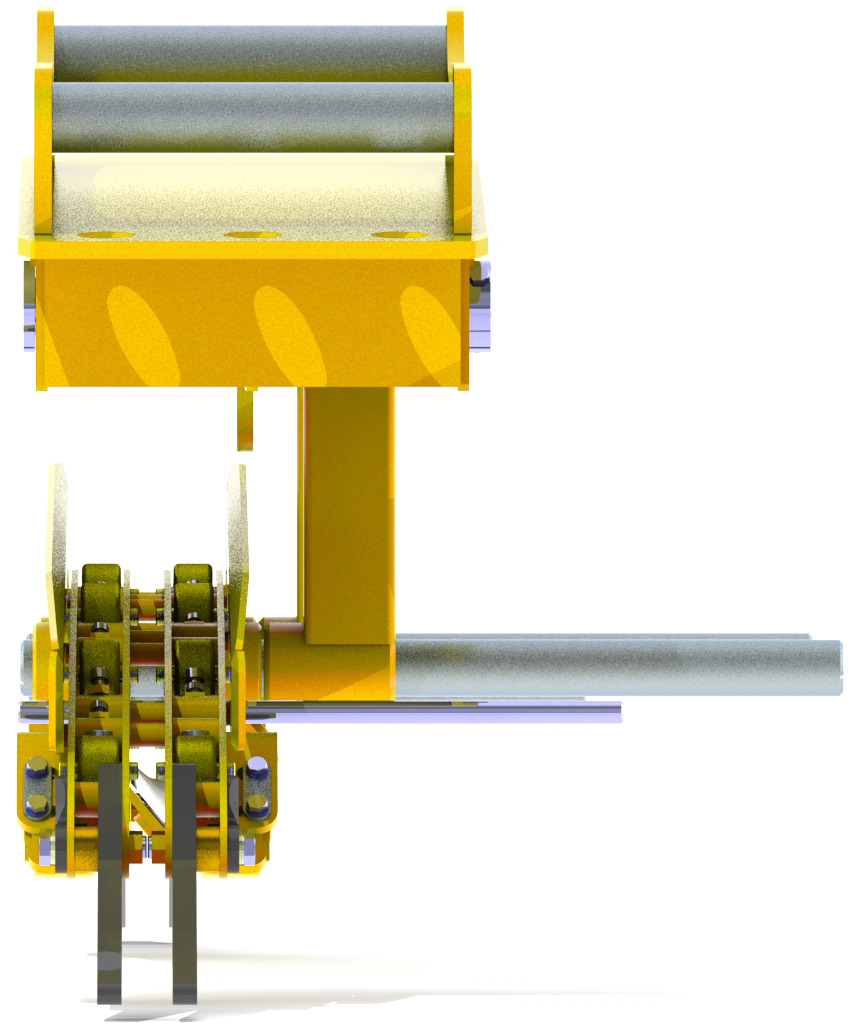

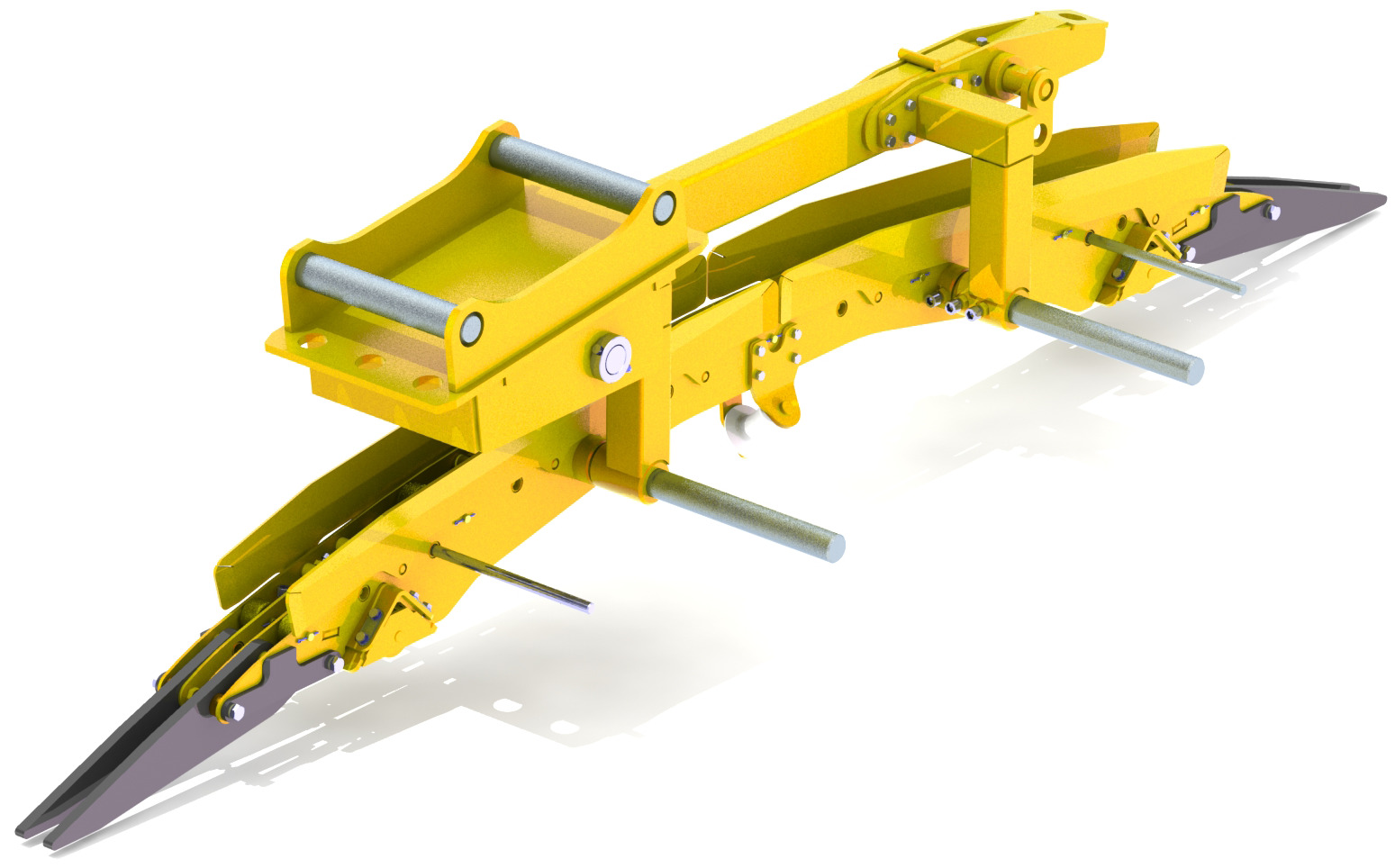

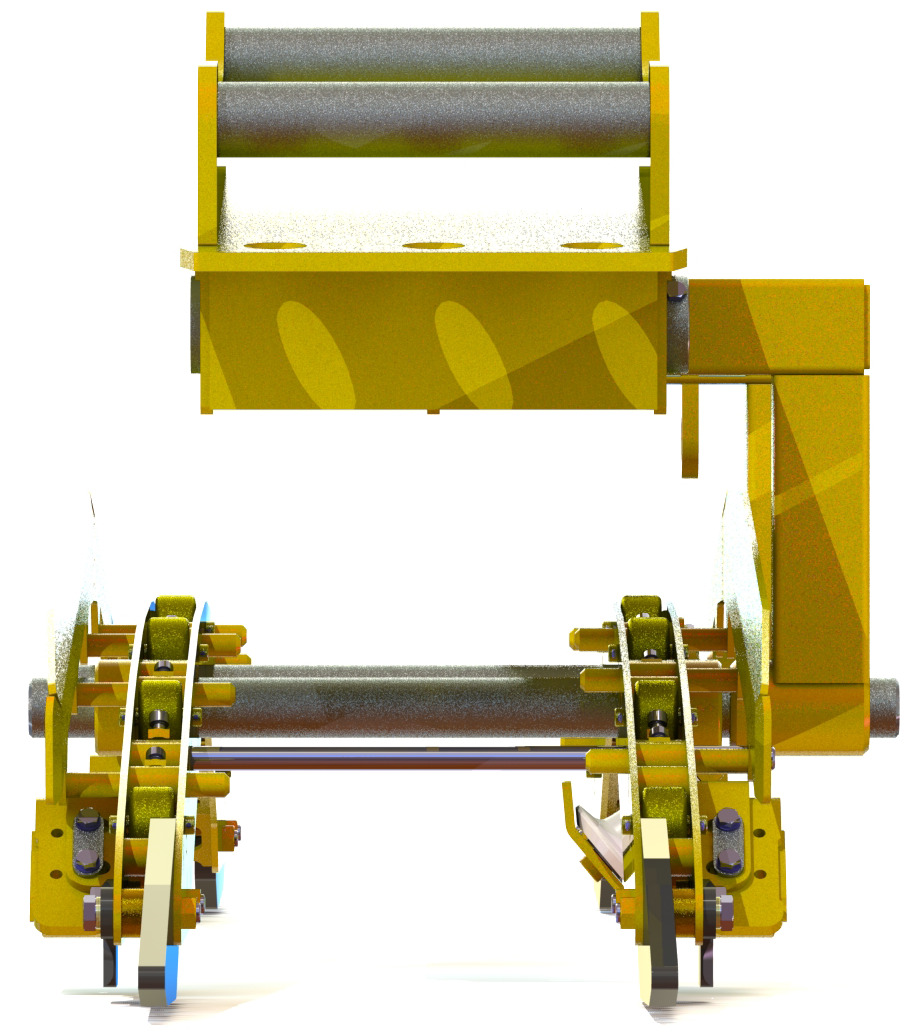

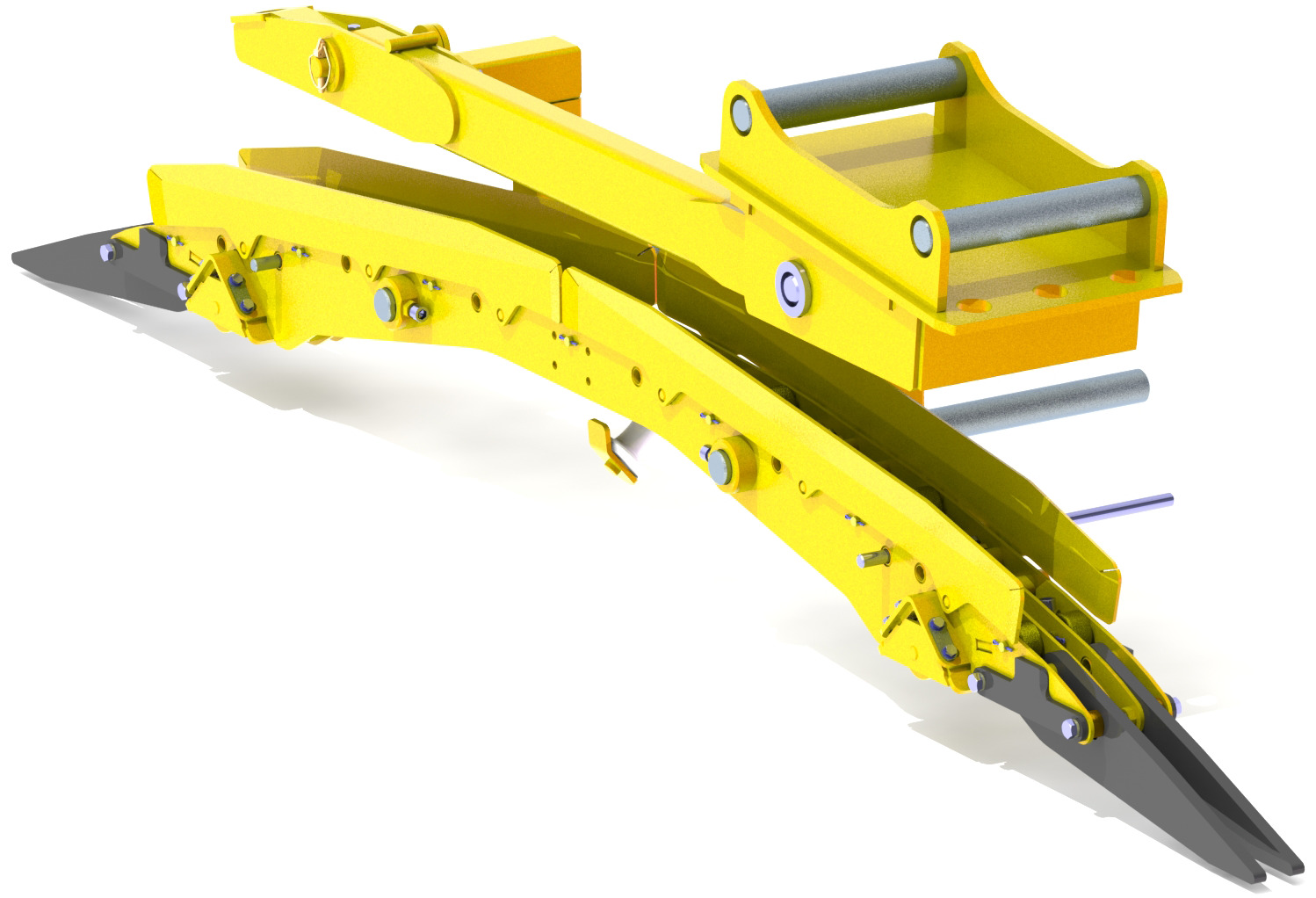

Lid Opener LÖP G2

Easily lifts the cable trench lid and places cable into the trench

Generation 2 of the lid opener is the perfect tool for quickly laying cables in existing trenches with concrete lids, both on top and lowered types.

The lid opener is adjustable for lids up to 75 mm thickness and recommended trench wall thickness of 50-80 mm. Can be adjusted for greater thickness if necessary.
The standard model is adjustable from 142-670 mm, optimal for lids from 350-645 mm wide but can be adjusted for lowered lids min. width 130 mm (change of extension rods recommended for lids smaller than 350 mm).

Extension kit is available as accessory for lids from 655-1055 mm with inner trench dimension 510-910 mm.

Accessories:
Bolt-on Bracket AGS, Expansion kit

Detailed description

Optimized for lids 345-645 mm wide
Adjustable width 142-670 mm
Adjustable for lid thickness up to 75 mm

Product list

Stocked item

LÖP 03

170-03228-000-00

LID OPENER G2

Product Group

RAILWAY

Bracket

Add adapter

Weight Class

4-24

Additional/others

Bolt-on bracket AGS additional

Description

Bracket: Hole pattern, For lids 345-645 mm, Recommended operating weight: 4-24 ton, Weight: 290 kg

Related products & Accessories

Mounting Bracket AGS

Cable Trench Lid Grapple GRL-S

Cable Trench Lid Grapple Premium GRL
