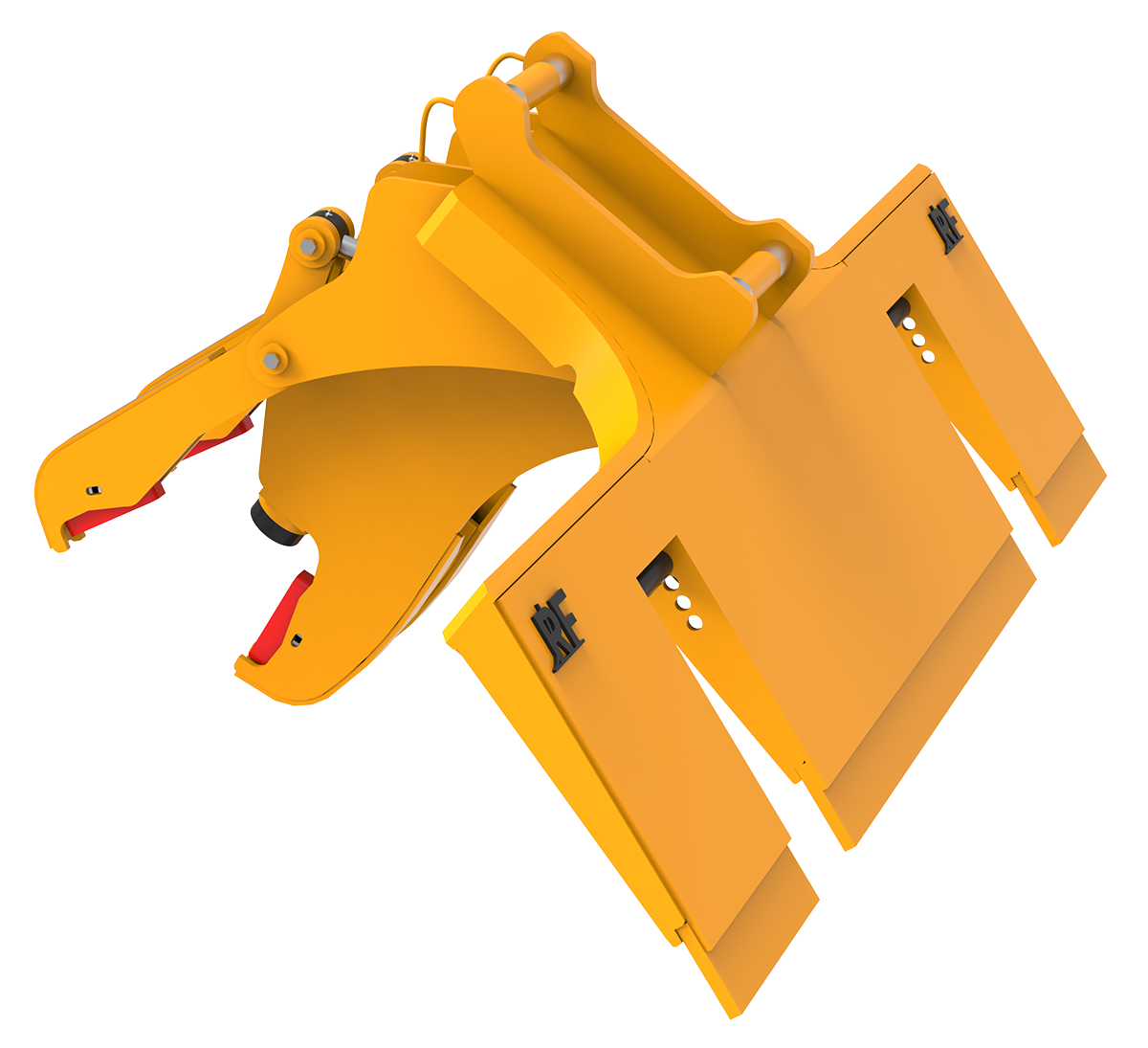

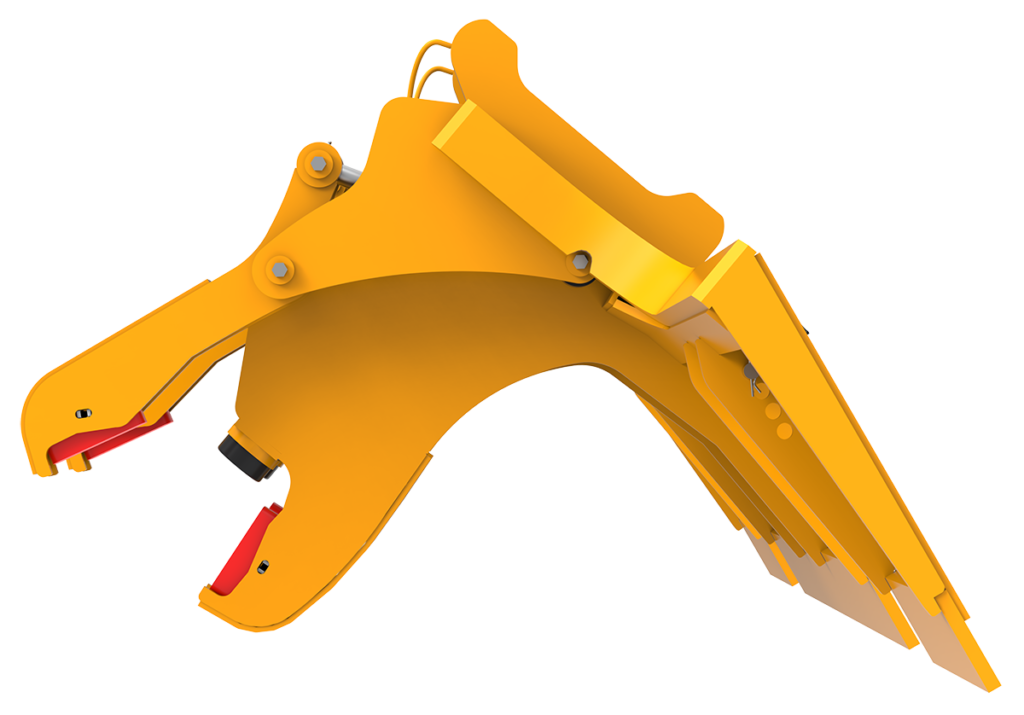

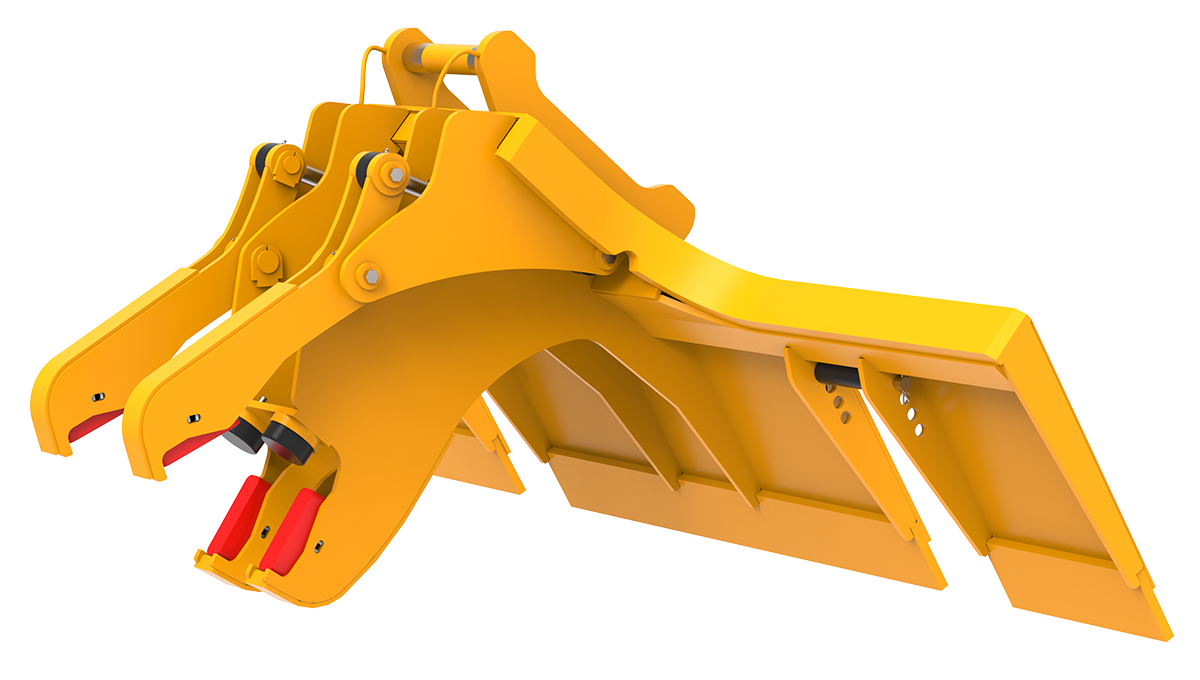

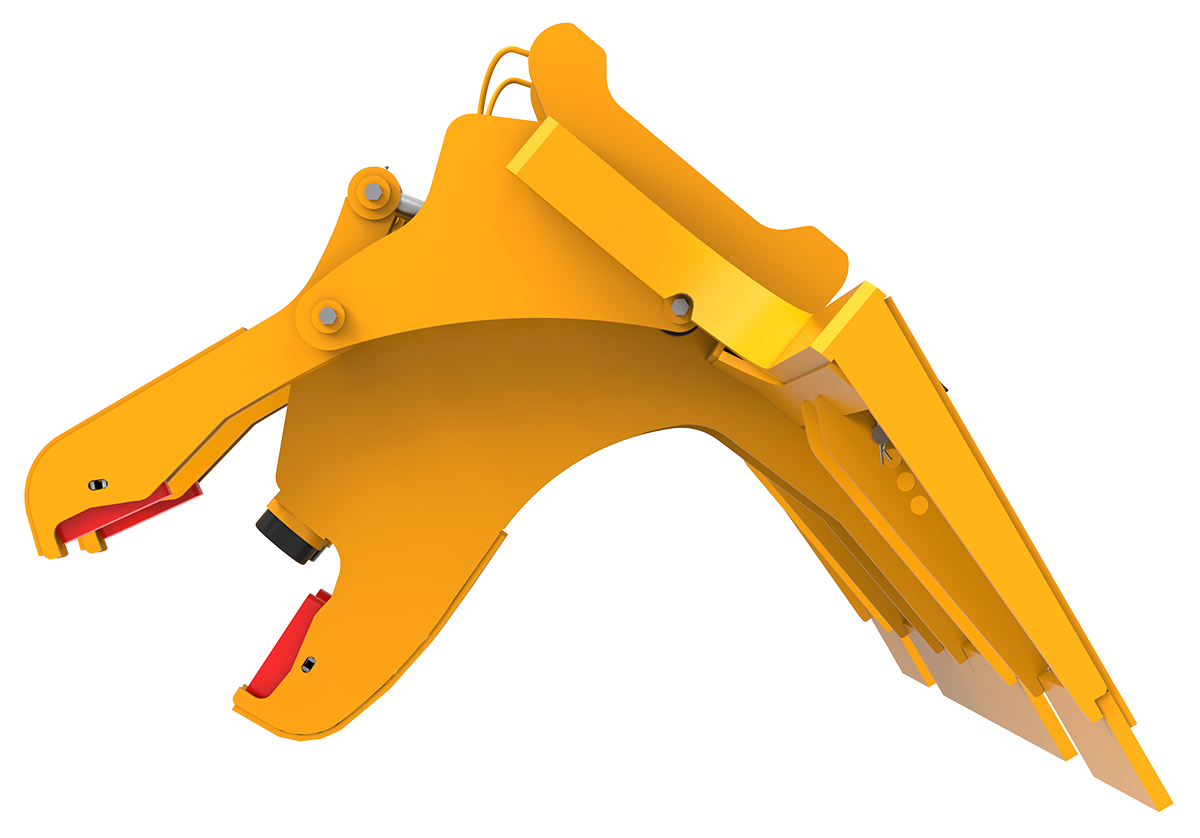

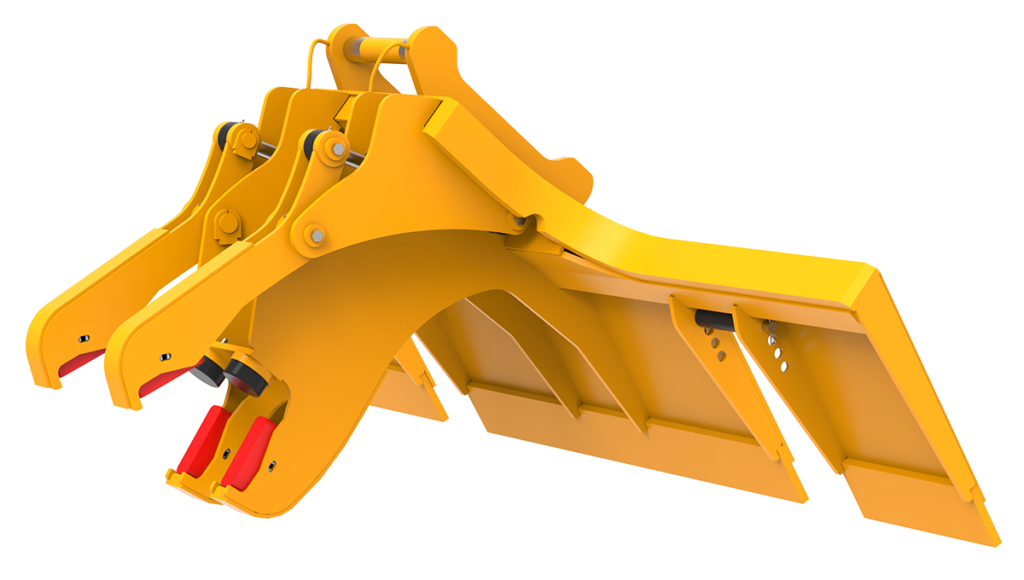

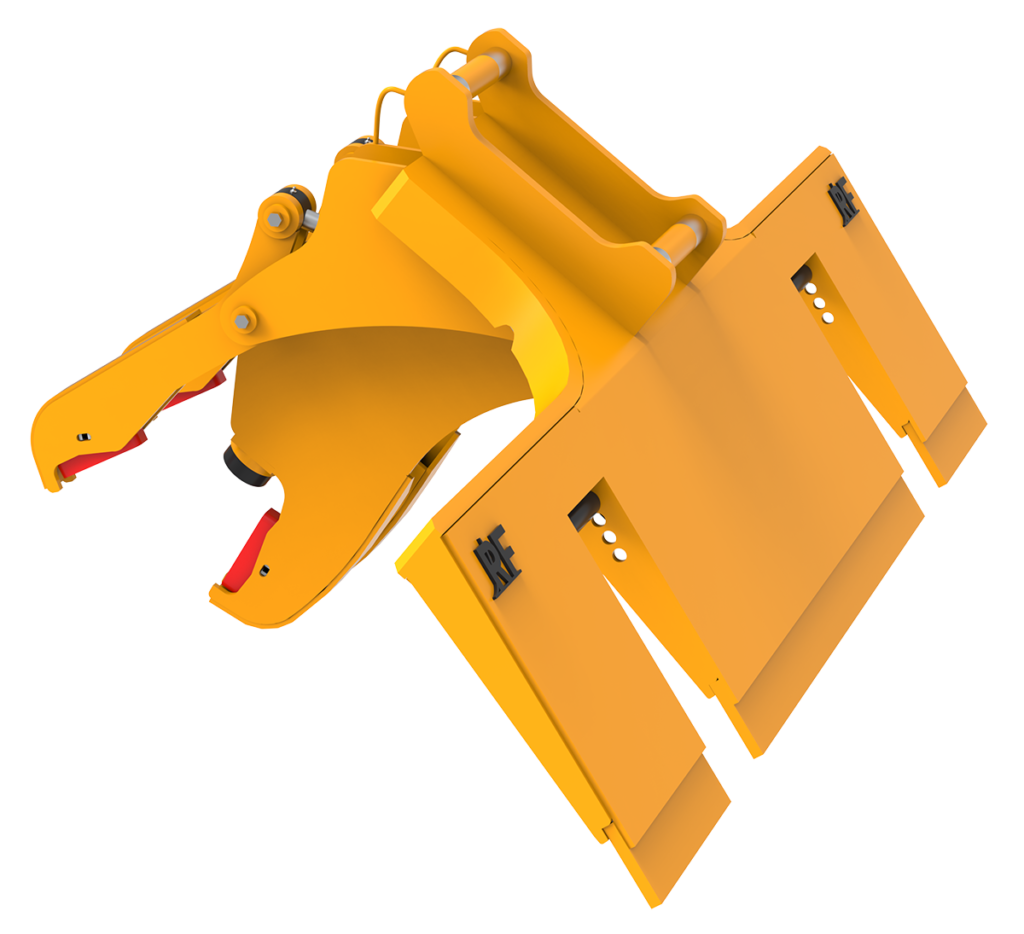

Sleeper Changer RBS

Flexible, efficient and safe sleeper changer in high tensile steel and for different track gauges

As standard, the sleeper changer is built for 1435 mm track gauge but can be adapted for other track gauges. It has adjustable depth and provides safe lifts through a load-holding valve.
Effective. The blade is used to remove ballast, the sleeper is then gripped by two hydraulically operated grips and pulled from the ballast bed. New sleeper is placed and the blade is used to refill ballast.

  • A load-holding valve on the griping function ensures a safe grip even in the event of a hydraulic pressure drop
  • Made of high tensile steel
  • Standard track gauge 1435 mm

Detailed description

Width: 2700 mm
Max load: 2000 kg
Grab opening: 0-440 mm

Operating machine:
One hydraulic circuit
Oil flow: 30-60 l/min (7,9-15,8 GPM)
Max pressure: 200 bar (2900 psi)

Downloads

RBS Sleeper Changer Product sheet
pdf Download

Product list

Stocked item

RBS

155-00107-000-00

SLEEPER CHANGER RBS S45

Product Group

RAILWAY

Bracket

S45

Weight Class

10-24

Description

For Tiltrotator, Recommended operating weight: 10-24 ton, Weight: 630 kg

RBS

155-00109-000-00

SLEEPER CHANGER RBS S50

Product Group

RAILWAY

Bracket

S50

Weight Class

10-24

Description

For Tiltrotator, Recommended operating weight: 10-24 ton, Weight: 630 kg

RBS

155-00111-000-00

SLEEPER CHANGER RBS S60

Product Group

RAILWAY

Bracket

S60

Weight Class

10-24

Description

For Tiltrotator, Recommended operating weight: 10-24 ton, Weight: 630 kg

Related products & Accessories

Sleeper Grapple RBE

Sleeper Changer with fastclip module RBS CLF

Ballast Sweeper Roller SKBB

Ballast Tamper RST
