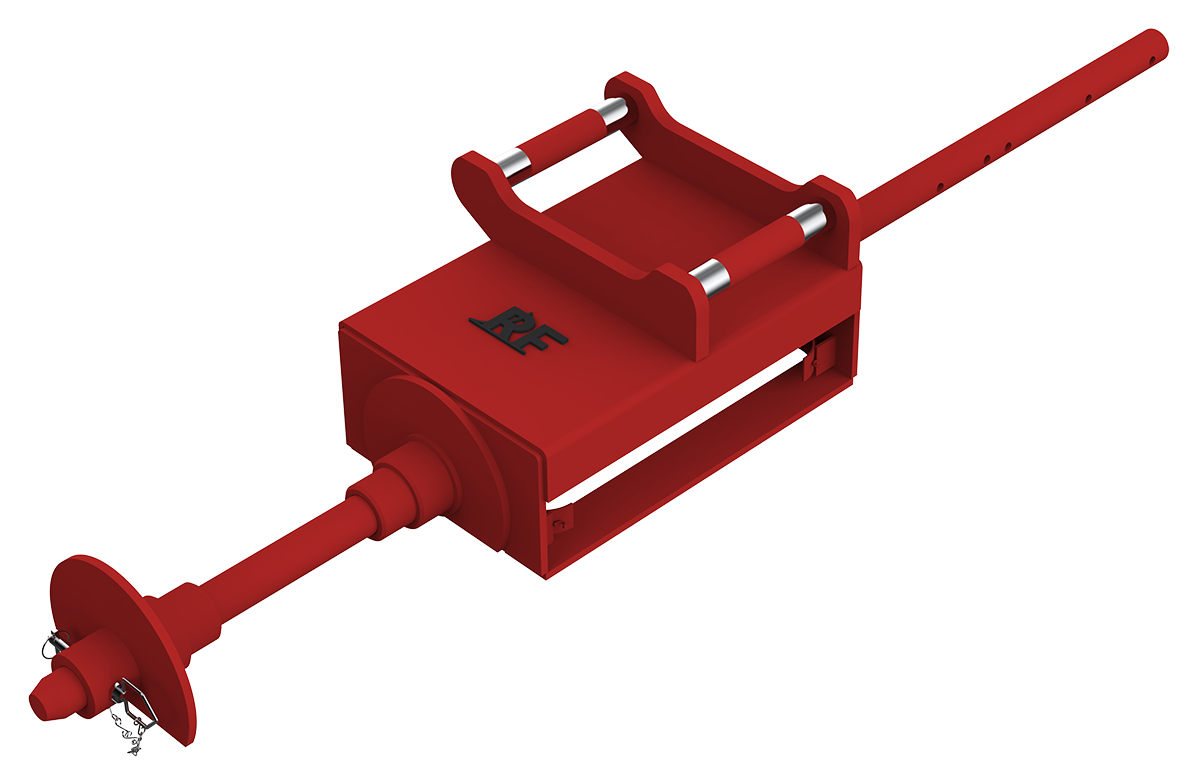

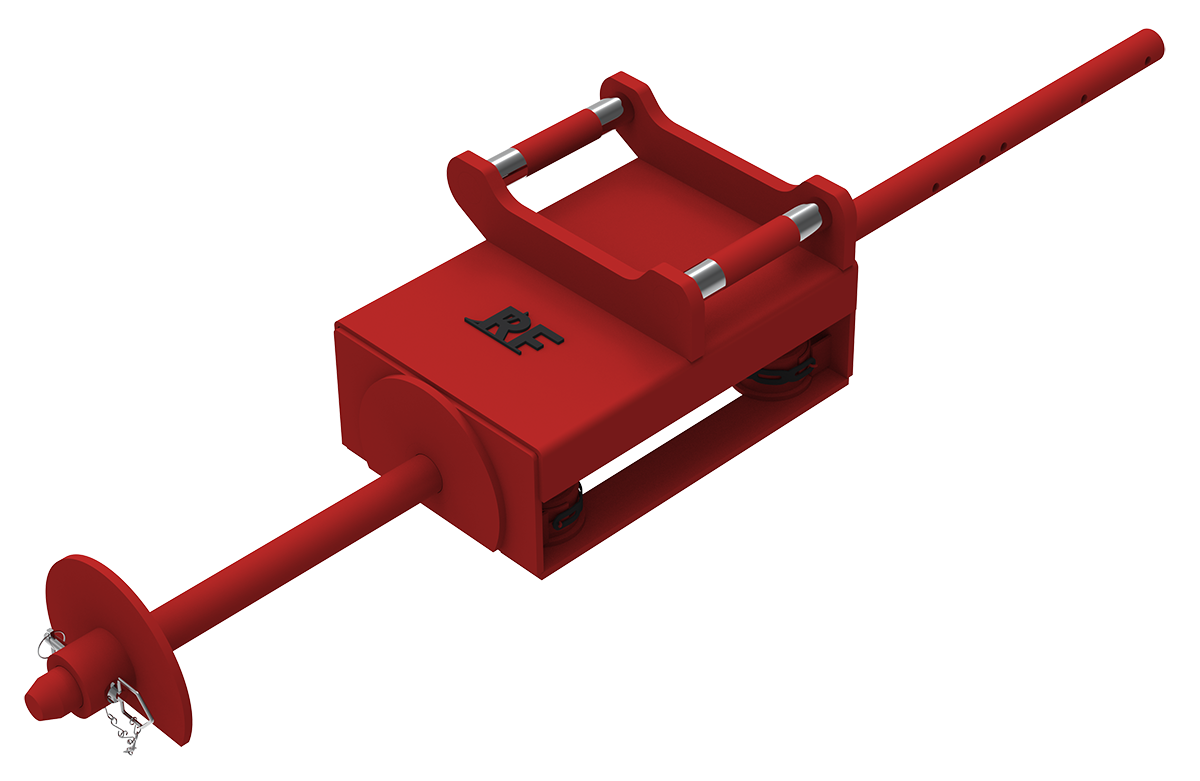

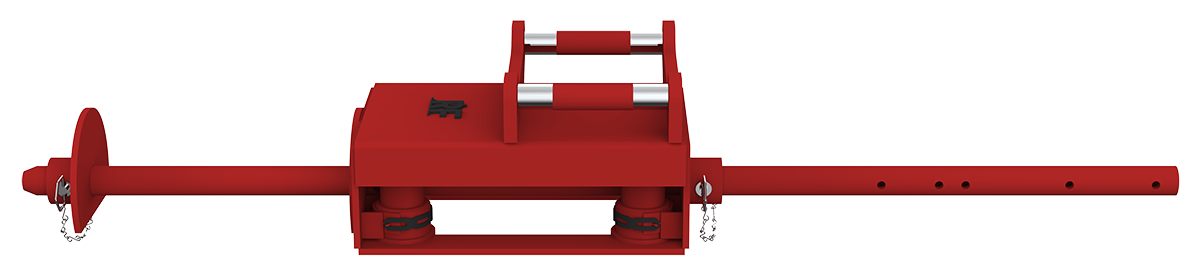

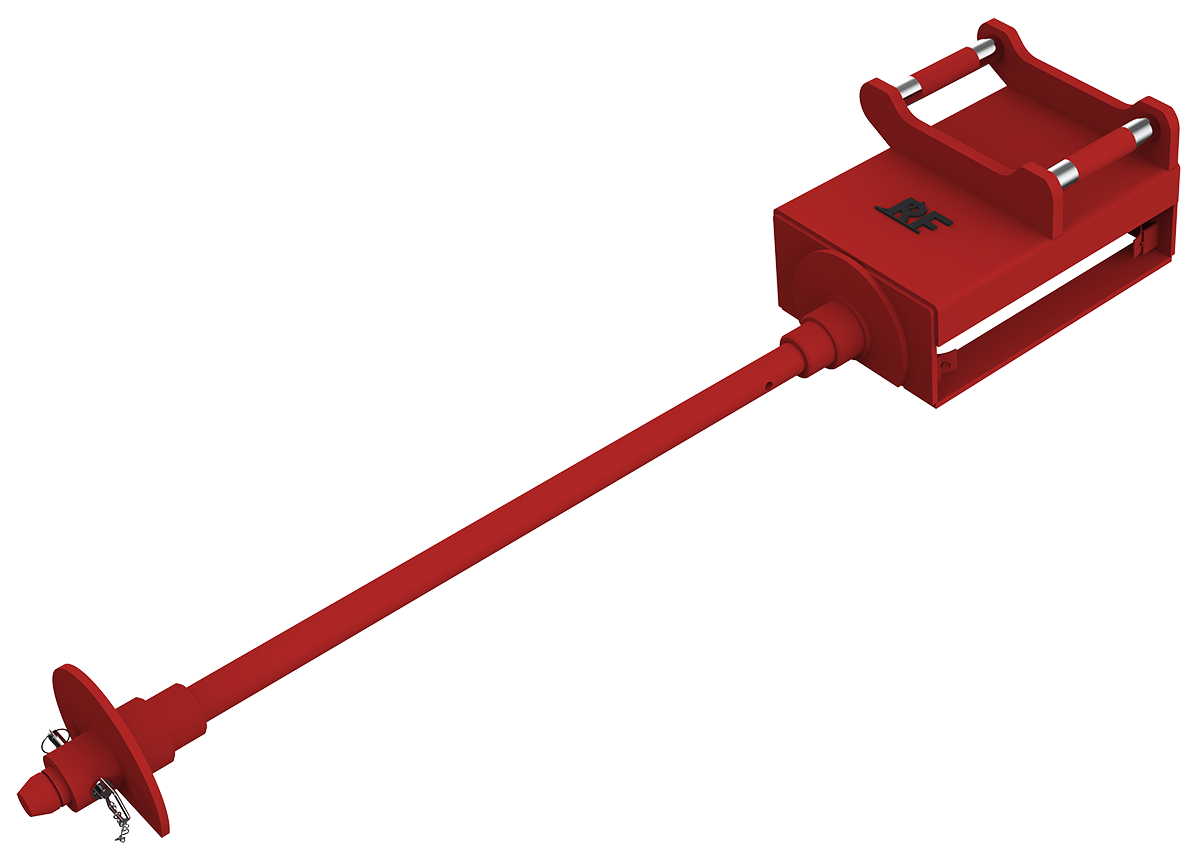

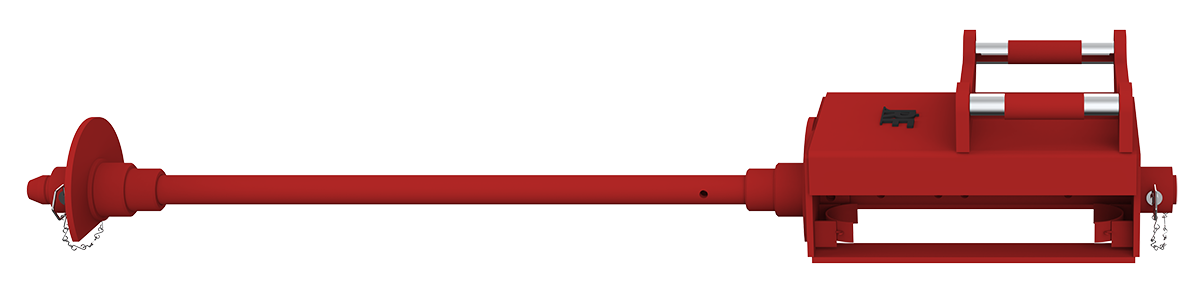

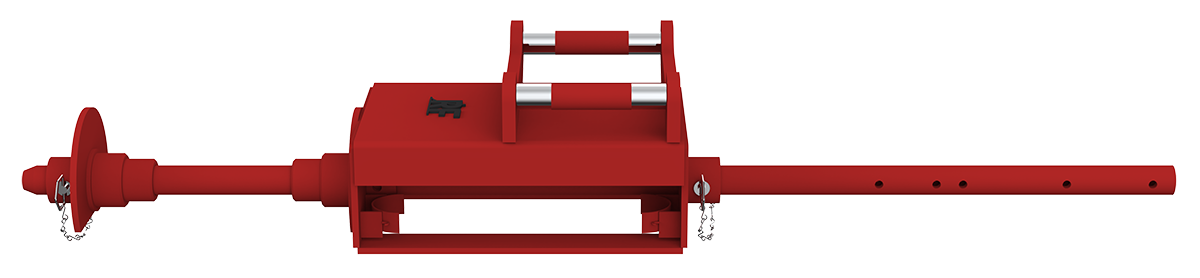

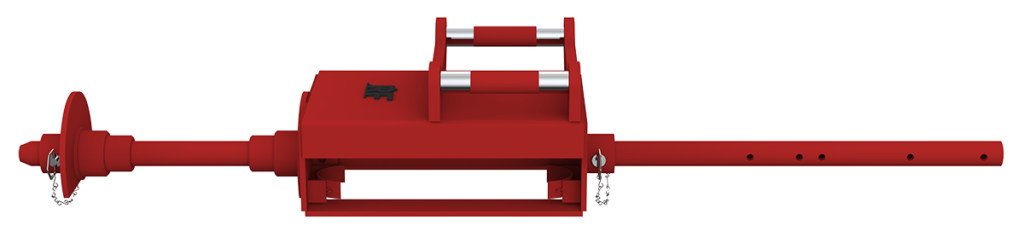

Drum Holder KST 07

Used for carrying cable drum K4-K28 with excavator. The drum holder has a very strong chassis that keeps the spear stable regardless of position.

KST 07 is delivered with cones and pins to lock the cable drum. These are easily locked into the chassis when not in use to always be available on site.

  • Drum holder/ Fiber cloth holder
  • Spear length: 1600 mm
  • Spear diameter: 70 mm
  • Max load: 2000 kg*

Detailed description

Max load 2000kg* (LC600 mm)

*Load table included with delivery for information on maximum load of different drum sizes.

Downloads

KST 07, 17 Drum holder Product sheet 2020
pdf Download

Product list

Stocked item

KST 07

130-00104-000-07

DRUM HOLDER/FIBRE CLOTH HOLDER S40

Product Group

CABLE LAYING

Bracket

S40

Description

Bracket: S40, Max load 2000kg, Shaft length 1600mm, Shaft diam. 70mm

KST 07

130-00107-000-07

DRUM HOLDER/FIBRE CLOTH HOLDER S45

Product Group

CABLE LAYING

Bracket

S45

Description

Bracket: S45, Max load 2000kg, Shaft length 1600mm, Shaft diam. 70mm

KST 07

130-00109-000-07

DRUM HOLDER/FIBRE CLOTH HOLDER S50

Product Group

CABLE LAYING

Bracket

S50

Description

Bracket: S50, Max load 2000kg, Shaft length 1600mm, Shaft diam. 70mm

KST 07

130-00111-000-07

DRUM HOLDER/FIBRE CLOTH HOLDER S60

Product Group

CABLE LAYING

Bracket

S60

Description

Bracket: S60, Max load 2000kg, Shaft length 1600mm, Shaft diam. 70mm
