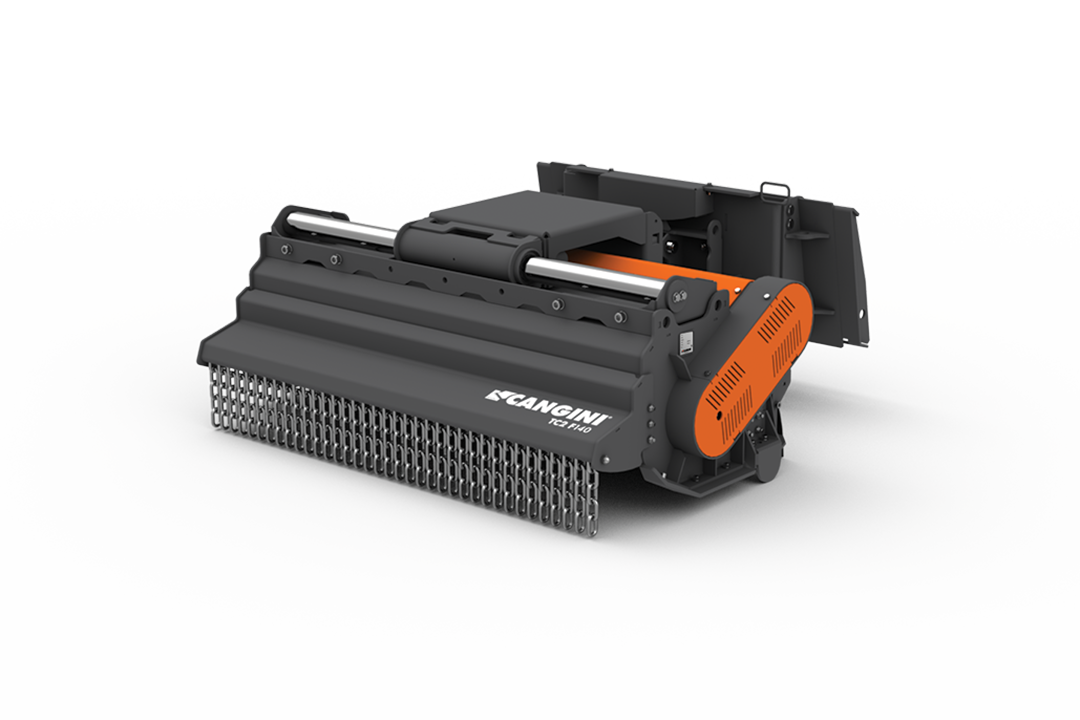

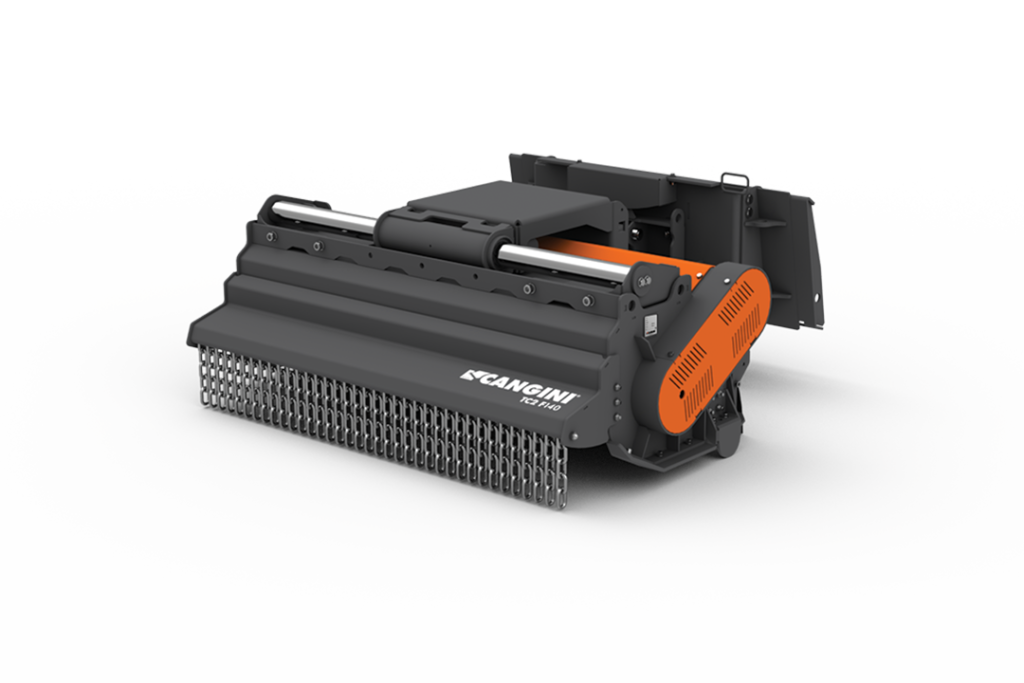

Mulcher TC

Robust mulcher in 13 different models for bushes, thickets and grass

The robust casing and double bottom make it exceptionally resistant to bumps. Equipped with support rollers that can be adjusted in height and a bolted bracket that can be moved laterally, makes it easy for the driver to adapt to different conditions. The Mulcher can also be supplemented with a mechanic floating system that adapts to the surface.
The Mulcher is delivered with knife bundles for grass and weed or hammer bundles for larger bushes and bushwood up to 10 cm in diameter.

  • Robust with double bottom
  • Low oil consumption
  • Mechanic floating system (optional)
  • Knife bundles or hammer bundles



Accessories:

Bolt-on Bracket AGS, Fully hydraulick quick couplers, Mechanic floating system to follow the ground levels

Detailed description

Excavator requirements:

TC0: Oil flow: 14-‘machine capacity’ l/min, Pressure: 150-250 bar (rec. 200 bar)
TC1: Oil flow: 18-90 l/min, Pressure: 150-250 bar (rec. 200 bar)
TC2: Oil flow: 28-90 l/min, Pressure: 150-250 bar (rec. 200 bar)
TC3: Oil flow: 55-150 l/min, Pressure: 150-280 bar (rec. 200 bar)
TC4: Oil flow: 65-150 l/min, Pressure: 150-280 bar (rec. 200 bar)

Drainage line linked to the tank (max pressure 10 bar)

Downloads

TRINCIA-TC-ENG-NO-PREZZI
pdf Download

Product list

Stocked item

TC

179-01000-000-06

MULCHER TC1-60-B

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

1-4,5

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with blades, Working width: 600 mm, Max pressure: 250 bar, Flow: 18-90 l/min, Weight: 100 kg

TC

179-01000-020-06

MULCHER TC1-60-H

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

1-4,5

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with hammers, Working width: 600 mm, Max pressure: 250 bar, Flow: 18-90 l/min, Weight: 100 kg

TC

179-01000-000-08

MULCHER TC1-80-B

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

1-4,5

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with blades, Working width: 800 mm, Max pressure: 250 bar, Flow: 18-90 l/min, Weight: 115 kg

TC

179-01000-020-08

MULCHER TC1-80-H

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

1-4,5

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with hammers, Working width: 800 mm, Max pressure: 250 bar, Flow: 18-90 l/min, Weight: 115 kg

TC

179-02000-000-10

MULCHER TC2-100-B

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

4-9

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with blades, Working width: 1000 mm, Max pressure: 250 bar, Flow: 28-90 l/min, Weight: 270 kg

TC

179-02000-020-10

MULCHER TC2-100-H

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

4-9

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with hammers, Working width: 1000 mm, Max pressure: 250 bar, Flow: 28-90 l/min, Weight: 270 kg

TC

179-03000-000-13

MULCHER TC3-130-B

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

7,5-12

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with blades, Working width: 1300 mm, Max pressure: 280 bar, Flow: 55-150 l/min, Weight: 412 kg

TC

179-03000-020-13

MULCHER TC3-130-H

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

7,5-12

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with hammers, Working width: 1300 mm, Max pressure: 280 bar, Flow: 55-150 l/min, Weight: 412 kg

TC

179-04000-000-11

MULCHER TC4-110-B

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

10-15

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with blades, Working width: 1100 mm, Max pressure: 280 bar, Flow: 65-150 l/min. Weight: 455 kg

TC

179-04000-020-11

MULCHER TC4-110-H

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

10-15

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with hammers, Working width: 1100 mm, Max pressure: 280 bar, Flow: 65-150 l/min. Weight: 455 kg

TC

179-04000-000-15

MULCHER TC4-150-B

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

10-15

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with blades, Working width: 1500 mm, Max pressure: 280 bar, Flow: 65-150 l/min, Weight: 540 kg

TC

179-04000-020-15

MULCHER TC4-150-H

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

10-15

Additional/others

Bolt-on bracket AGS additional

Description

Shaft with hammers, Working width: 1500 mm, Max pressure: 280 bar, Flow: 65-150 l/min, Weight: 540 kg

Related products & Accessories

Mounting Bracket AGS
