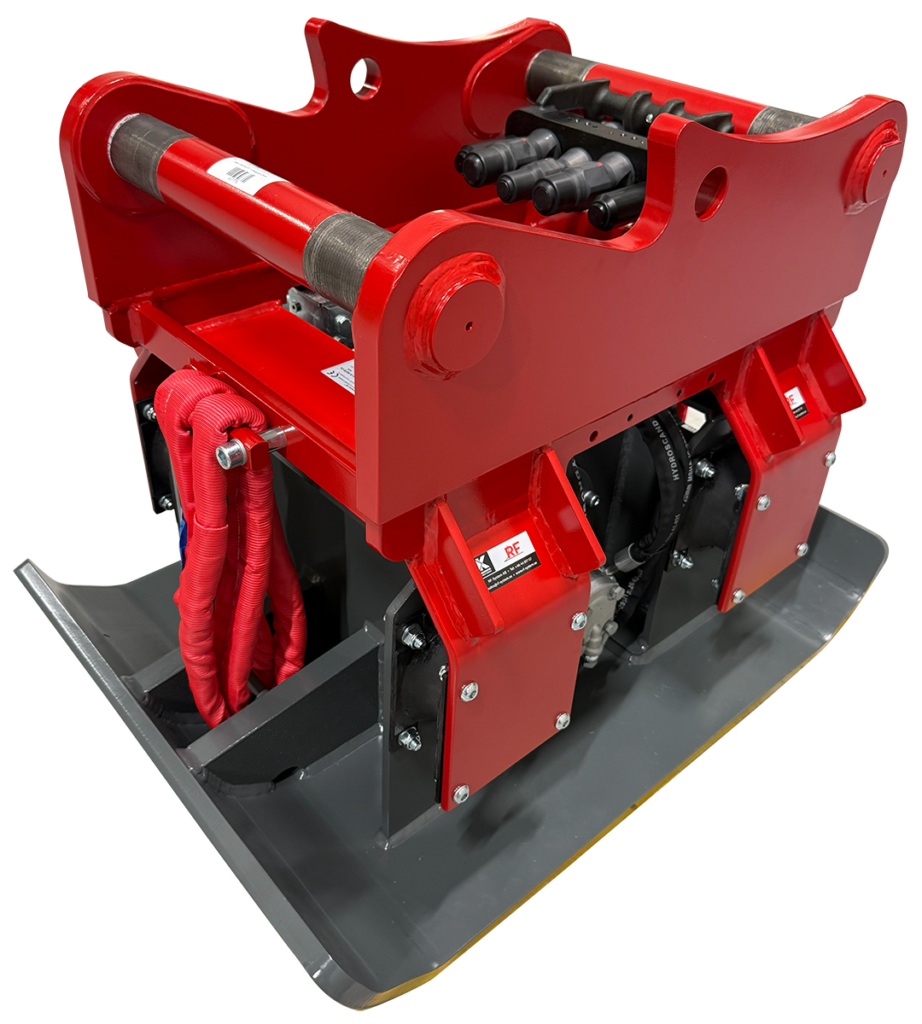

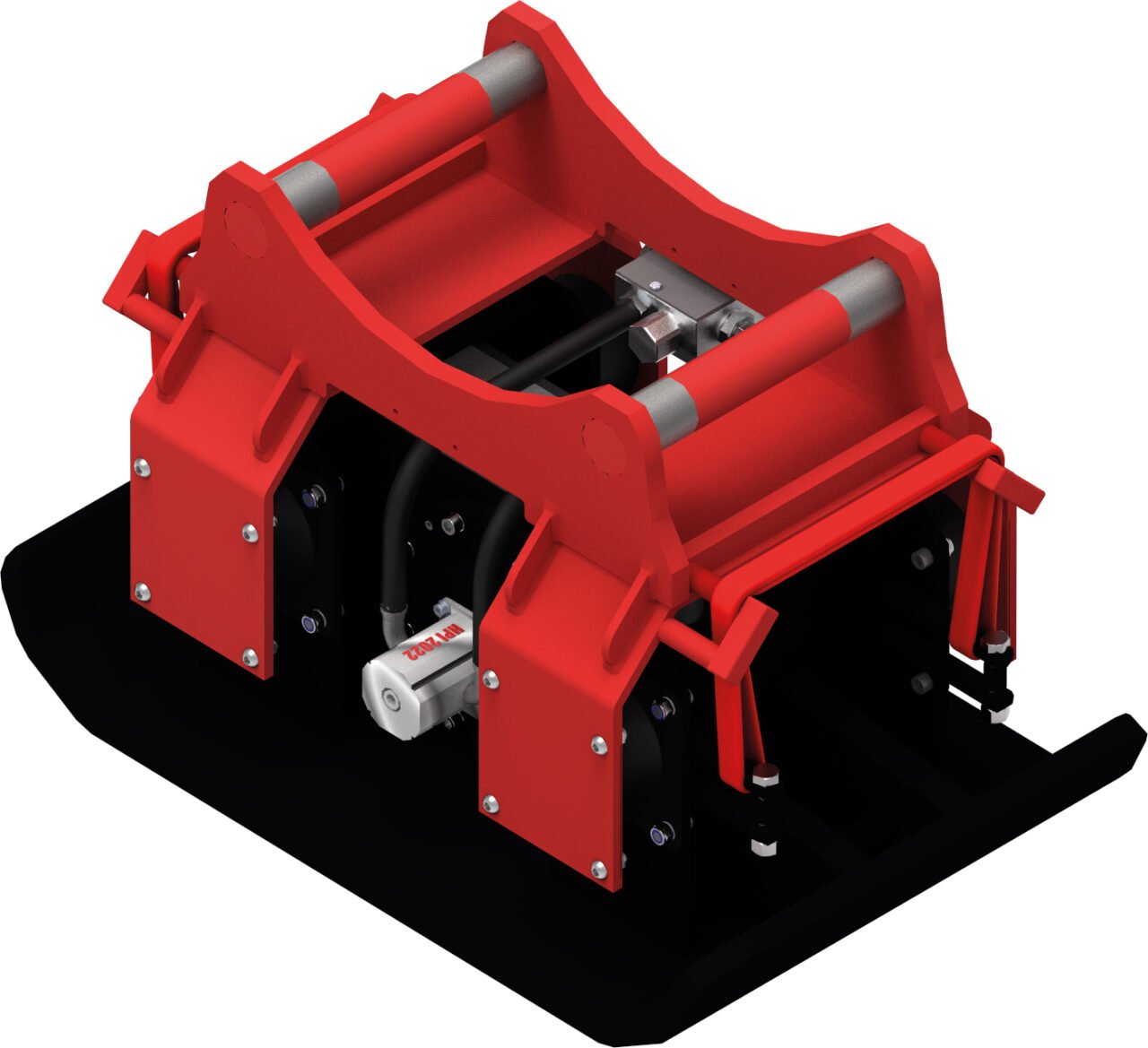

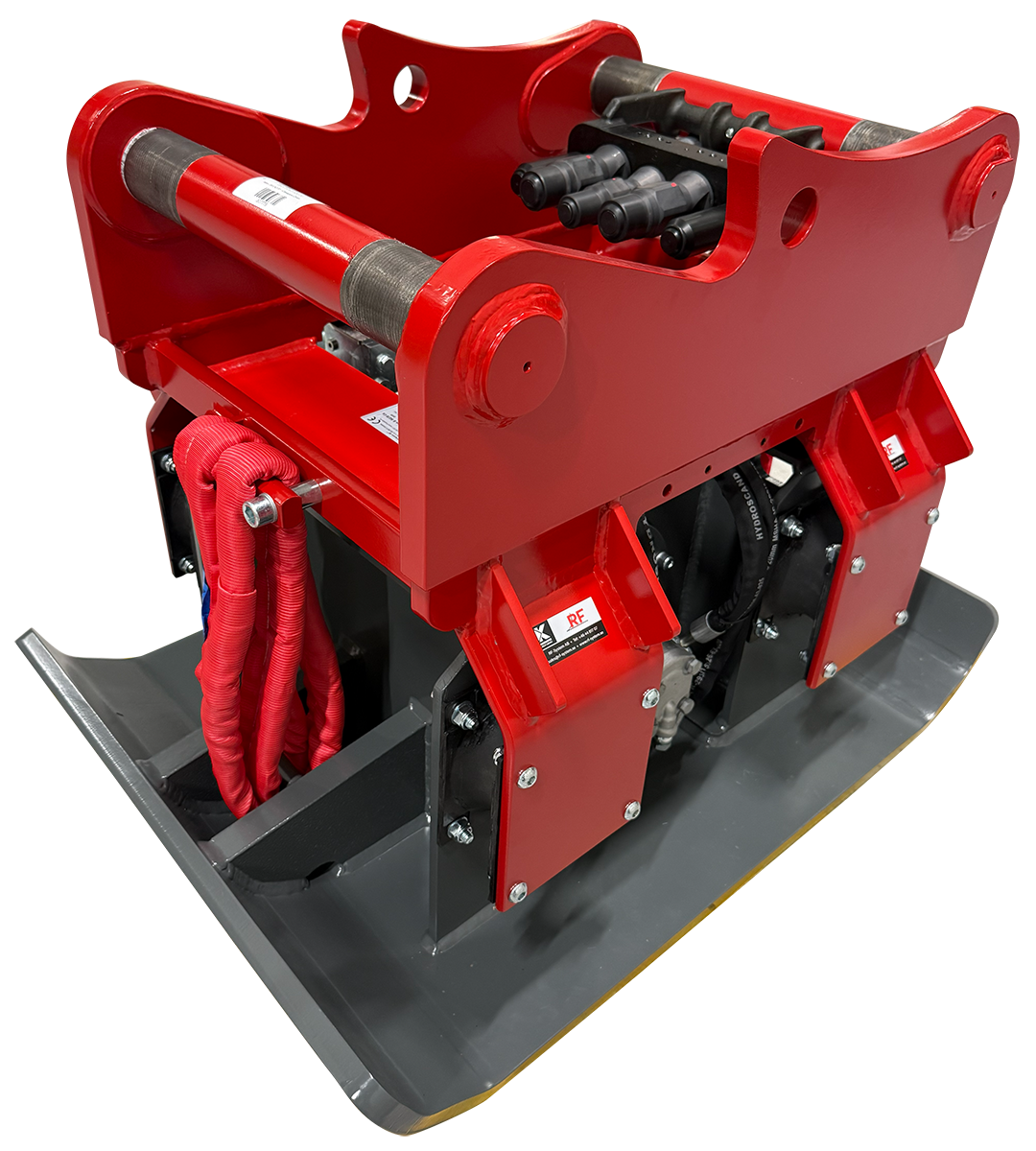

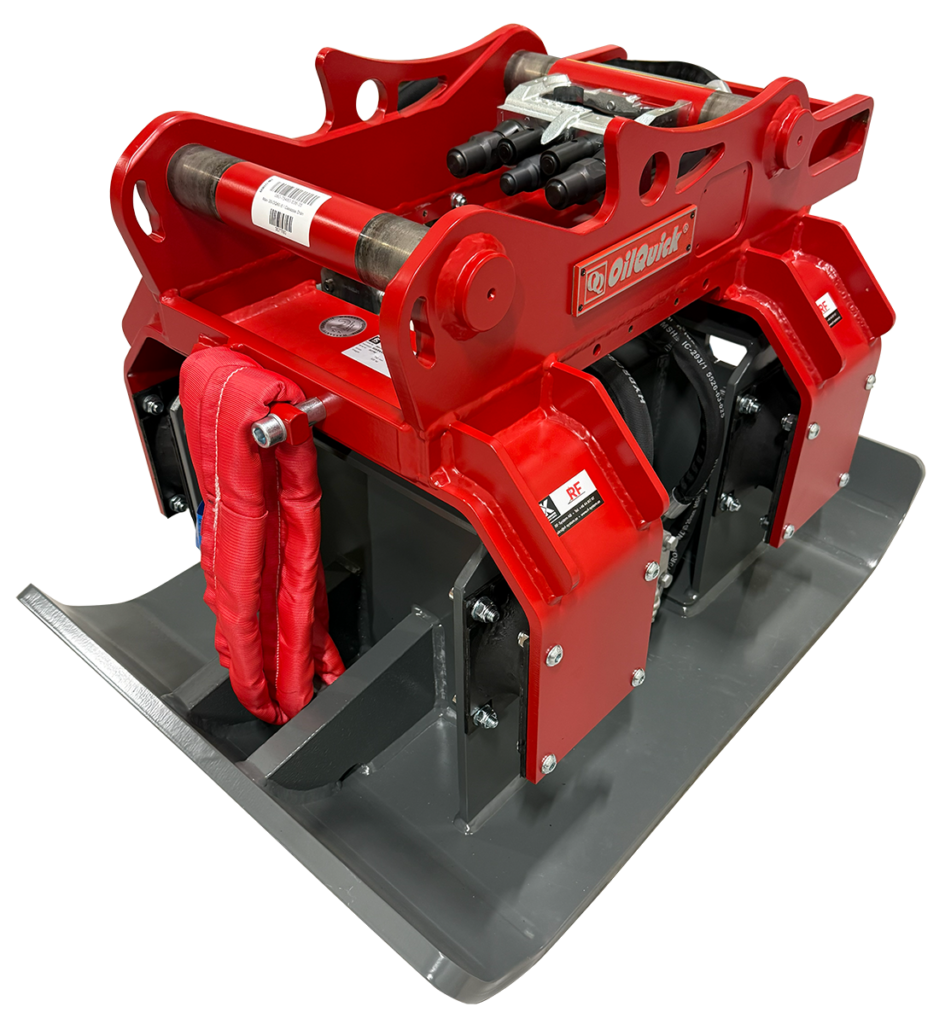

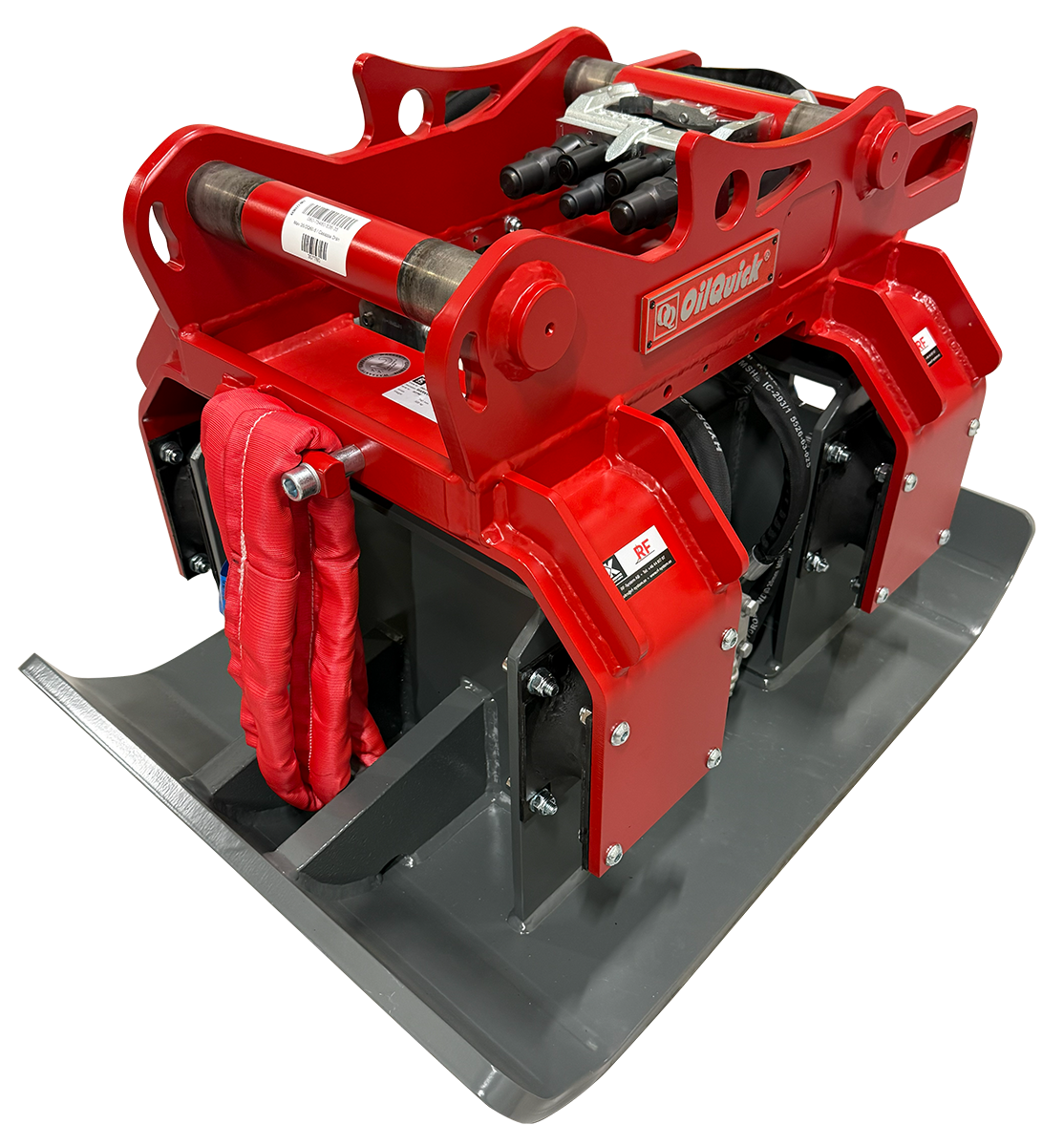

Ground Compactor MAV is a powerful and efficient machine compactor with very high compaction values, low oil flow requirement and low noise levels. It is specially developed to function optimally under a tiltrotator* and is easy to adapt to different machine types.
Thanks to its damped construction and a high vibration frequency of 60 Hz, MAV generates a powerful, even compaction while being gentle on the excavator. The high frequencies reduce the risk of strong impacts to the machine’s boom, which provides a better working environment and longer life of the equipment.
Using the ground compactor mounted on a machine also increases safety, especially when working in trenches, as the operator can work from a safe distance. The ability to adjust the angle via the tiltrotator makes compaction more precise and efficient, even on sloping or hard-to-reach surfaces.
A newly develped hydraulic system with constant flow valve and pressure limitation provides safe and reliable operation. MAV is delivered as standard with a motor that can withstand high back pressure, with the possibility of choosing a motor with drainage as an option.
*Prerequisite for use under tiltrotator is according to requirements for oil flow and free return to tank.
Advantages:
Accessories:
Bolt-on Bracket AGS
MAV18: Packning force 7500kg, Vibr.frequency 60Hz, Plate std LxB 710×600, Width 600mm, Height 560mm, Weight 380kg
MAV35: Packning force 7500kg, Vibr.frequency 60Hz, Plate std LxB 760×740, Width 740mm, Height 560mm, Weight 510kg
MAV45: Packning force 14000kg, Vibr.frequency 58Hz, Plate std LxB 885×850, Width 850mm, Height 700mm, Weight 750kg
Recommended oil flow 50 l/min (13,2 GPM) for optimal operation och cost efficiency.
Oil flow: min. 50 l/min (13,2 GPM), max 170 l/min (44,9 GPM)
Pressure: max 350 bar (5076 psi)
Requires oil free return to tank
Stocked item
MAV
060-75107-535-18
CIVIL ENGINEERING & LANDSCAPING
S45
18
Other motors available
Width: 600mm, Packing force: 7500 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 380 kg
MAV
060-75109-535-18
CIVIL ENGINEERING & LANDSCAPING
S50
18
Other motors available
Width: 600mm, Packing force: 7500 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 380 kg
MAV
060-75111-535-18
CIVIL ENGINEERING & LANDSCAPING
S60
18
Other motors available
Width: 600mm, Packing force: 7500 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 380 kg
MAV
060-75111-535-35
CIVIL ENGINEERING & LANDSCAPING
S60
35
Other motors available
Width: 740mm, Packing force: 7500 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 510 kg
MAV
060-75113-535-35
CIVIL ENGINEERING & LANDSCAPING
S70
35
Other motors available
Width: 740mm, Packing force: 7500 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 510 kg
MAV
060-75111-535-45
CIVIL ENGINEERING & LANDSCAPING
S60
45
Other motors available
Width: 850mm, Packing force: 14000 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 750 kg
MAV
060-75113-535-45
CIVIL ENGINEERING & LANDSCAPING
S70
45
Other motors available
Width: 850mm, Packing force: 14000 kg, Oil flow: 50-170 l/min, Max pressure: 350 bar, Casappa 14,6 without drain, New model valve and motor, Weight: 750 kg
