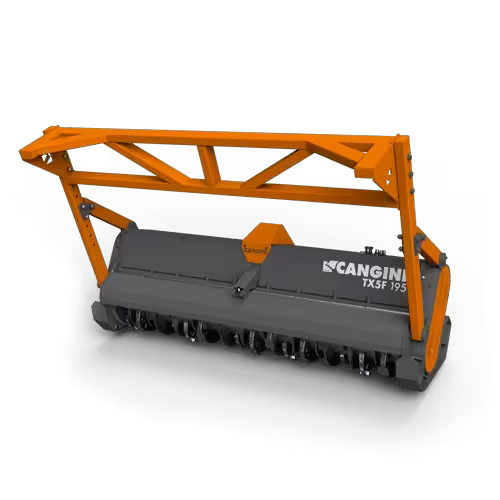

Forestry Mulcher TX

Powerful Mulcher for clearing trees and bushes

Whether it is overgrown ditches, low vegetation or tree removal, Mulcher TX offers the ultimate solution with perfect result. It mows down and chips trees and
shrubs as well as cutting tall grass.

Models for excavators 10-20 tons. Available with two different rotors; R2 for general vegetation, R3 for bush and tree clearing.

  • Automatic cooling system
  • Robust with double bottom
  • Moveable bolted adapter
  • Mechanically opening splash guard (hydraulic option)



Accessories:

Bolt-on Bracket AGS, Fully hydraulic quick couplers, Exchangeable drum

Detailed description

Excavator requirements:
TX5:
Oil flow: 90-300 l/min
Pressure: 250-400 bar*

TX6:
Oil flow: 110-300 l/min
Pressure: 250-400 bar*

Drainage line linked to the tank (max pressure 10 bar)

* Best performance at higher pressure (depending on diameter and hardness of wood)

Downloads

ae-testata-trinciante-forestale-force-one_en
pdf Download

Product list

Stocked item

TX

173-05000-000-10

FORESTRY MULCHER TX5-100

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

15

Additional/others

Bolt-on bracket AGS additional

Description

Drum cutting width: 1015 mm, Max log diam.: 220 mm, Weight: 535 kg

TX

173-05000-000-12

FORESTRY MULCHER TX5-120

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

15

Additional/others

Bolt-on bracket AGS additional

Description

Drum cutting width: 1280 mm, Max log diam.: 220 mm, Weight: 600kg

TX

173-06000-000-11

FORESTRY MULCHER TX6-110

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

20

Additional/others

Bolt-on bracket AGS additional

Description

Drum cutting width: 1150 mm, Max log diam.: 280 mm, Weight: 980kg

TX

173-06000-000-13

FORESTRY MULCHER TX6-130

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

20

Additional/others

Bolt-on bracket AGS additional

Description

Drum cutting width: 1350 mm, Max log diam.: 280 mm, Weight: 1060kg

TX

173-06000-000-15

FORESTRY MULCHER TX6-150

Product Group

CIVIL ENGINEERING & LANDSCAPING

Bracket

Add adapter

Weight Class

20

Additional/others

Bolt-on bracket AGS additional

Description

Drum cutting width: 1550 mm, Max log diam.: 280 mm, Weight: 1130kg
