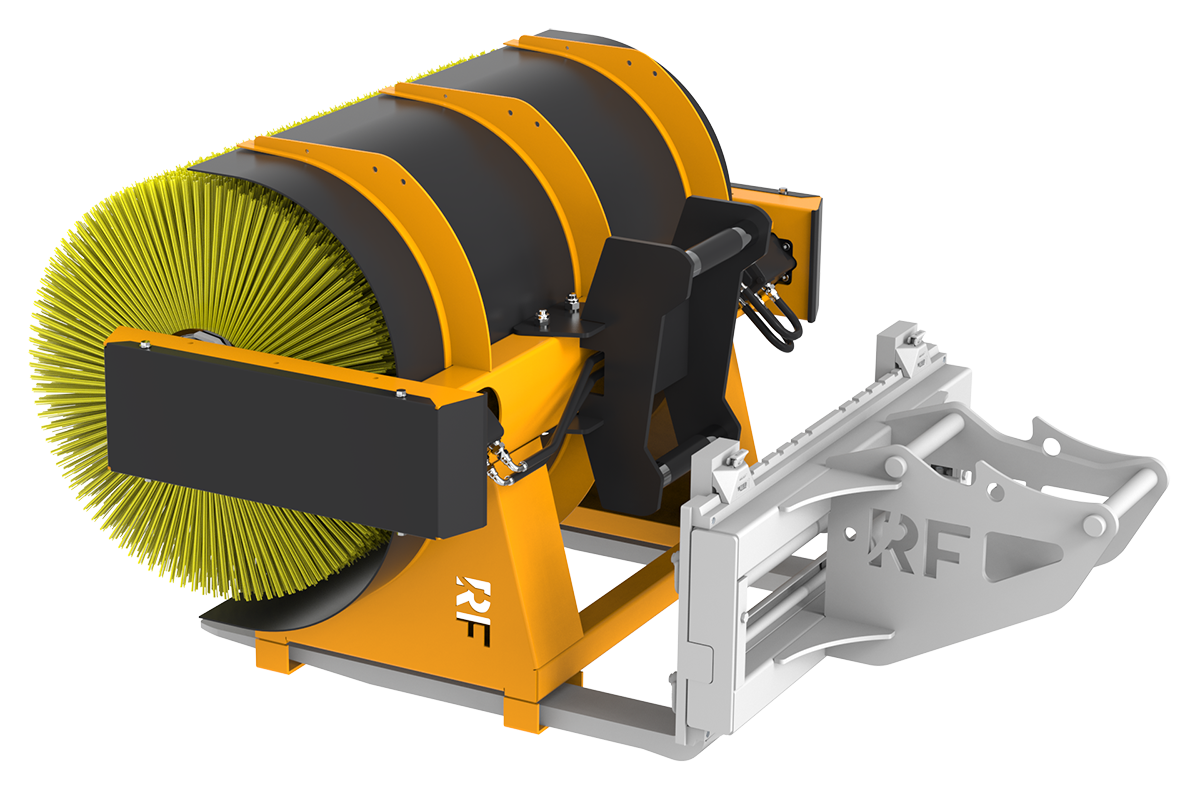

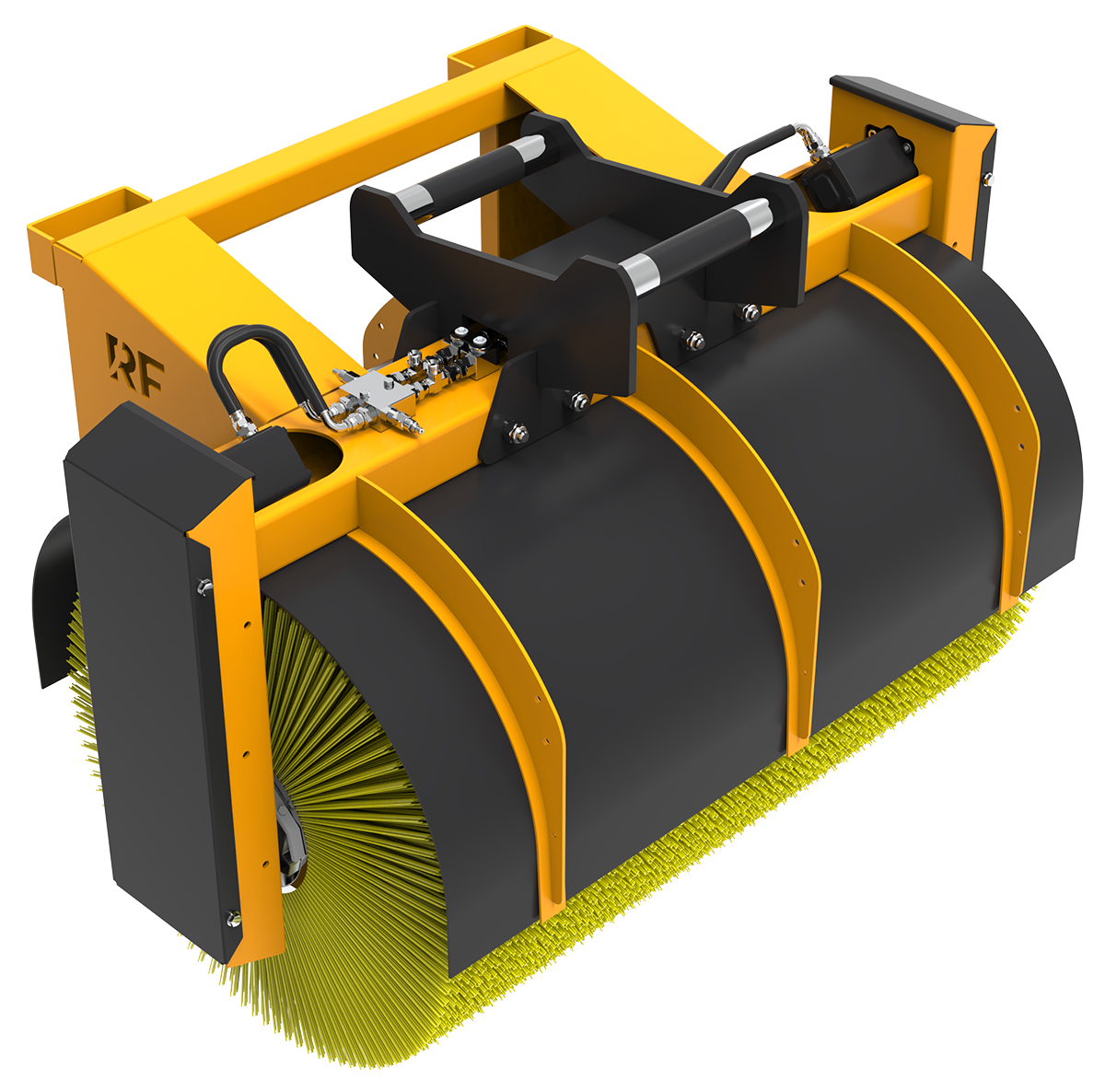

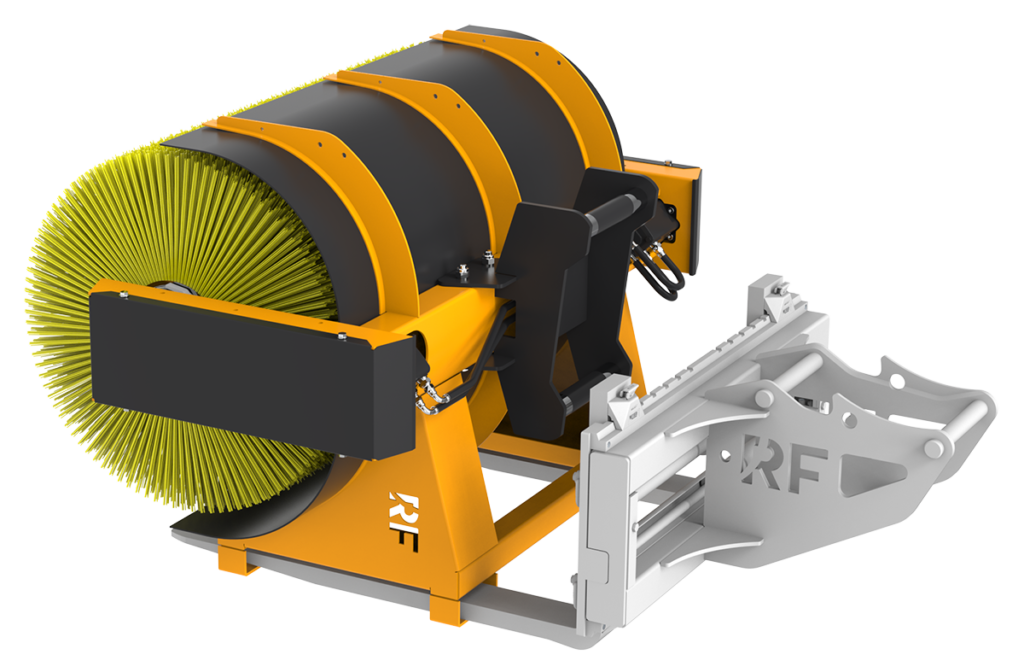

Sweeper Roller SKB

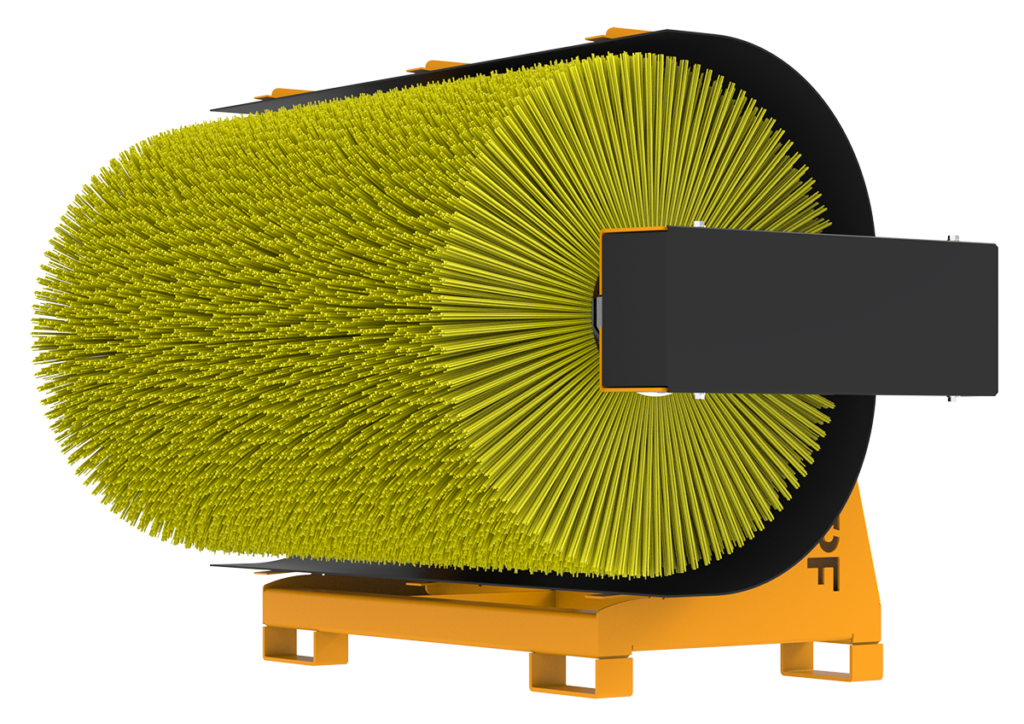

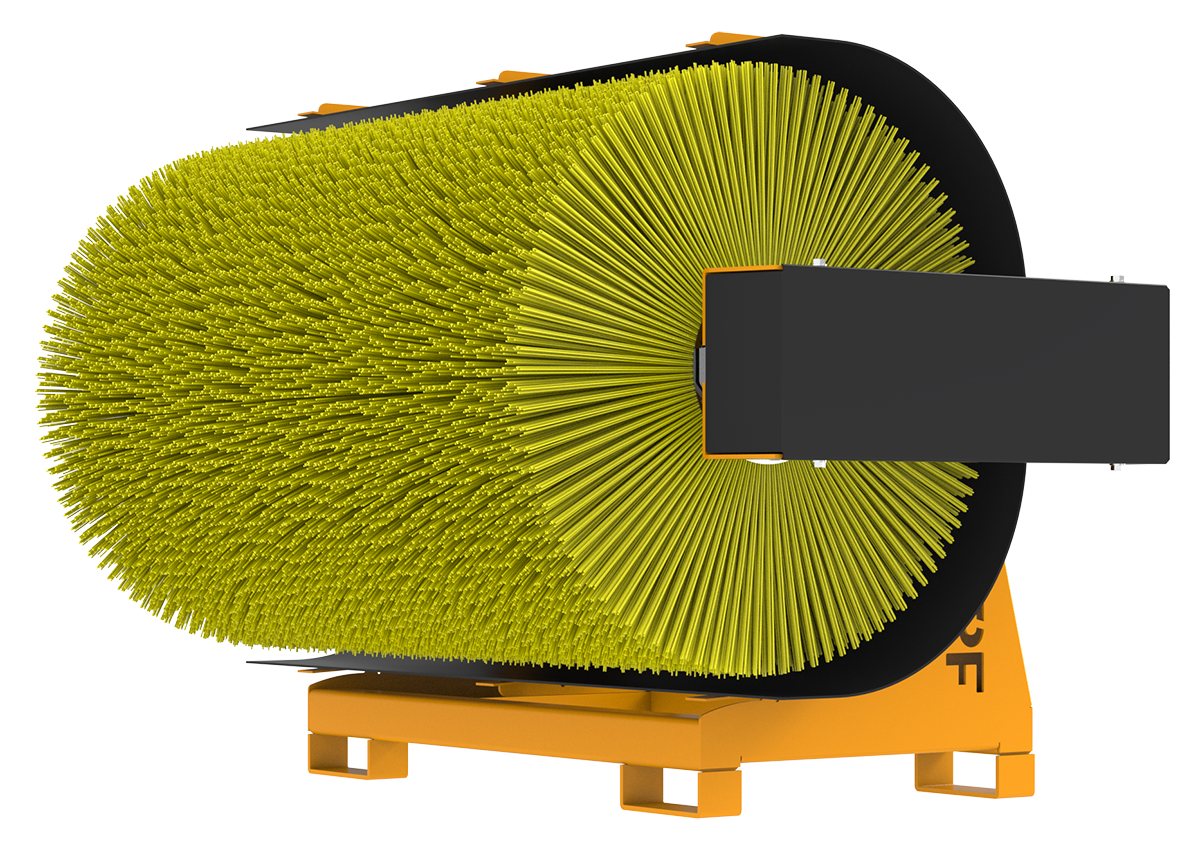

A robust sweeper roller with tightly packed bristles for the most demanding tasks

The sweeper roller is perfect for sweeping snow in e.g. track areas, even packed snow. It also sweeps other types of material such as gravel, stones, leaves and mud from hard surfaces. Recommended for excavators from 6 tons.

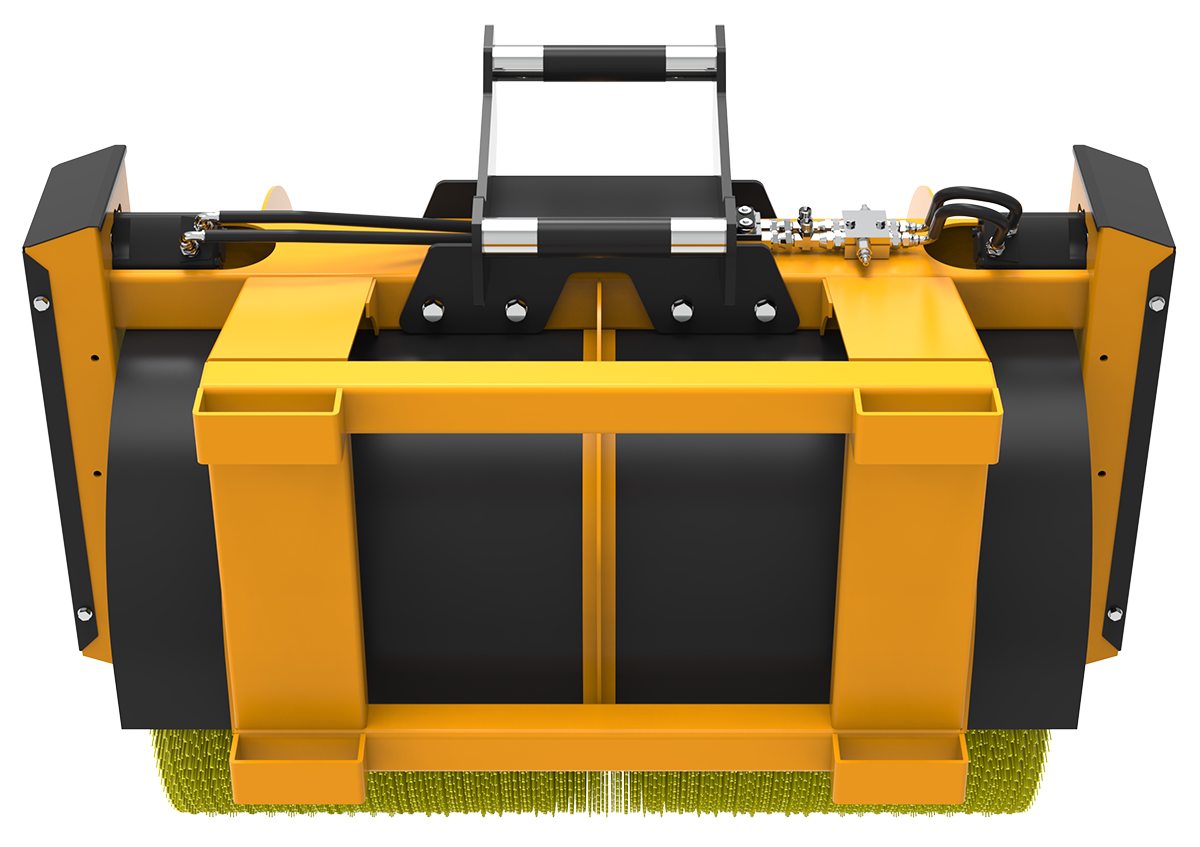

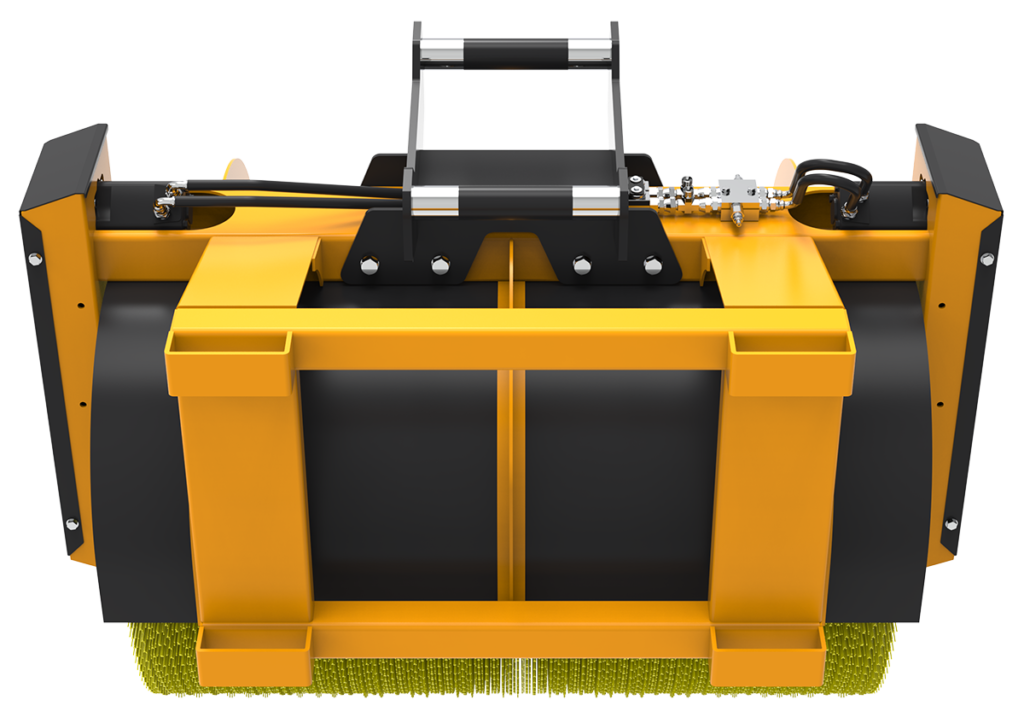

Equipped with fork pockets for easy transport.

Can be completed with separate ballast roller – two machines in one (double drive required) – to cope with most tasks on the railway. Bearing and drive chain are included with purchase of separate roller.



Accessories:

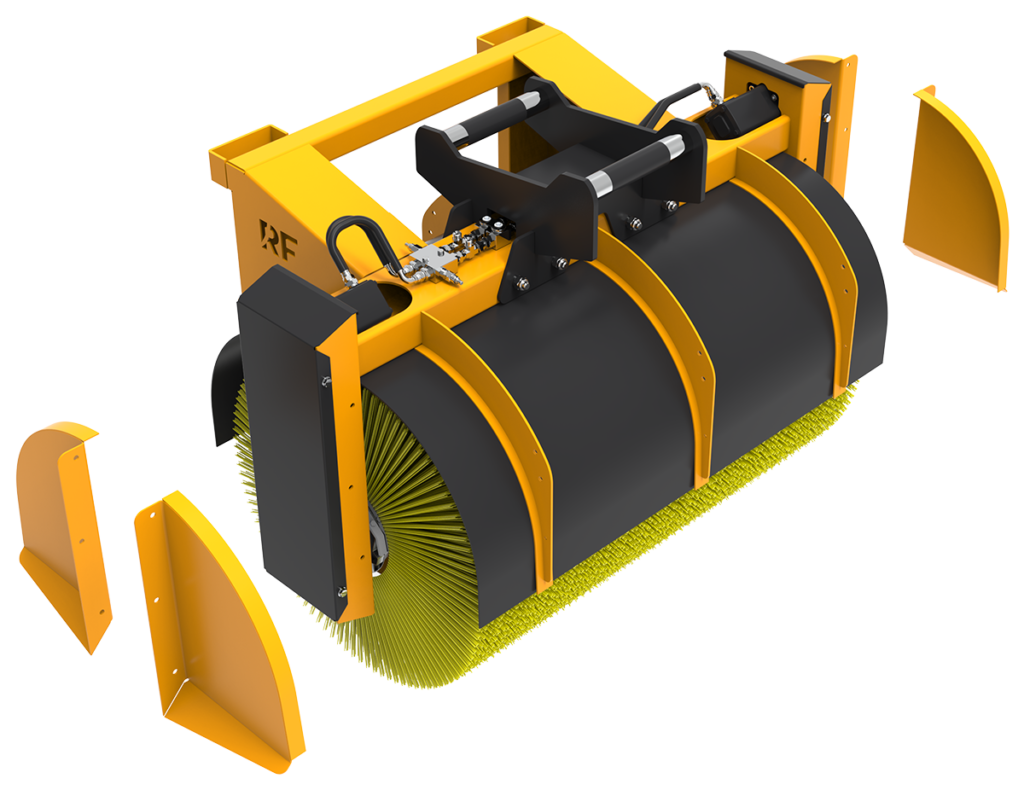

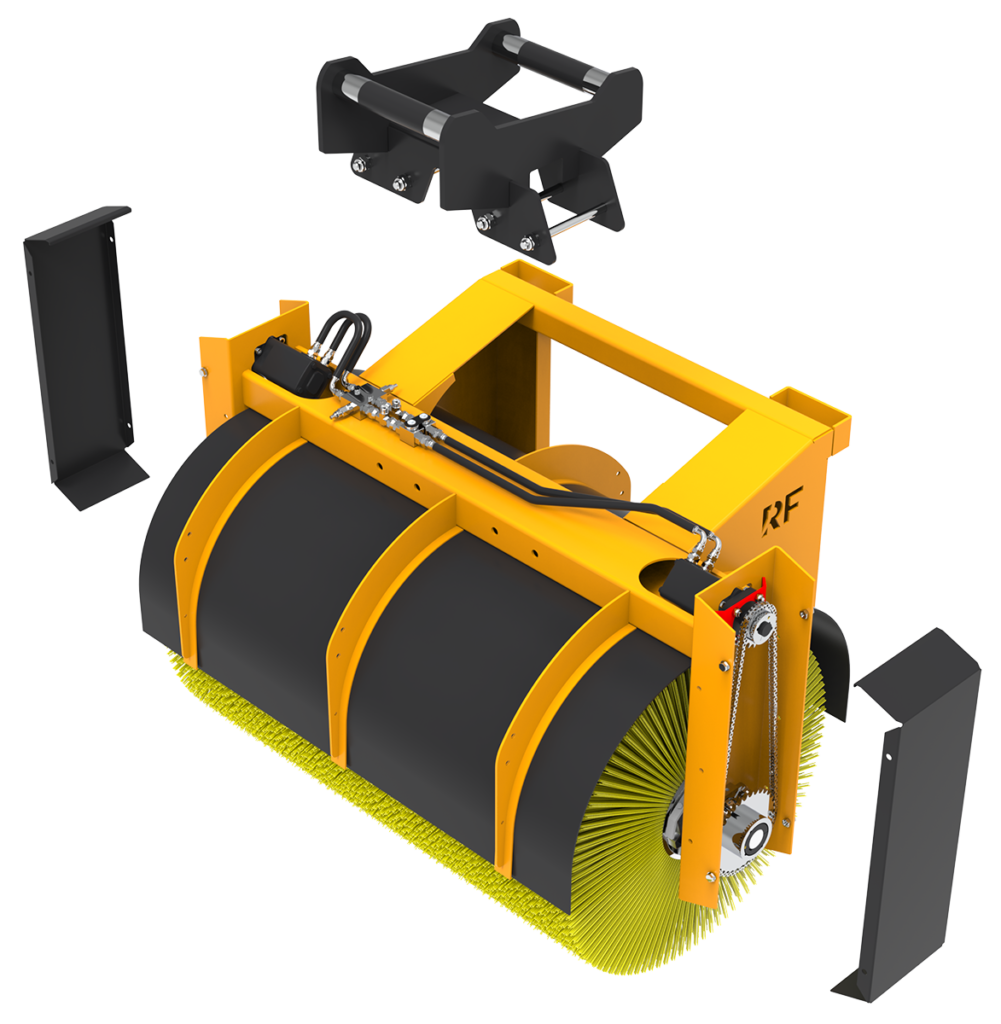

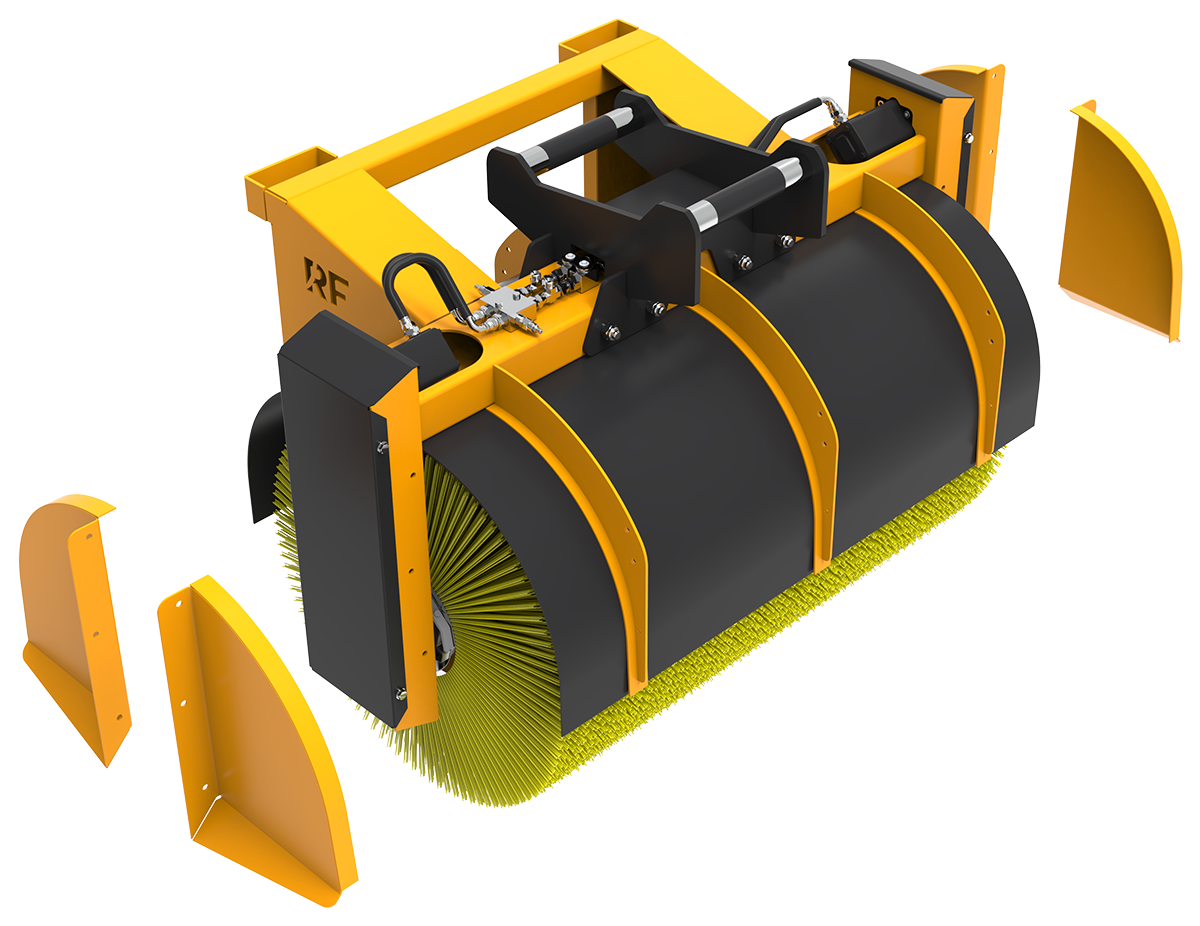

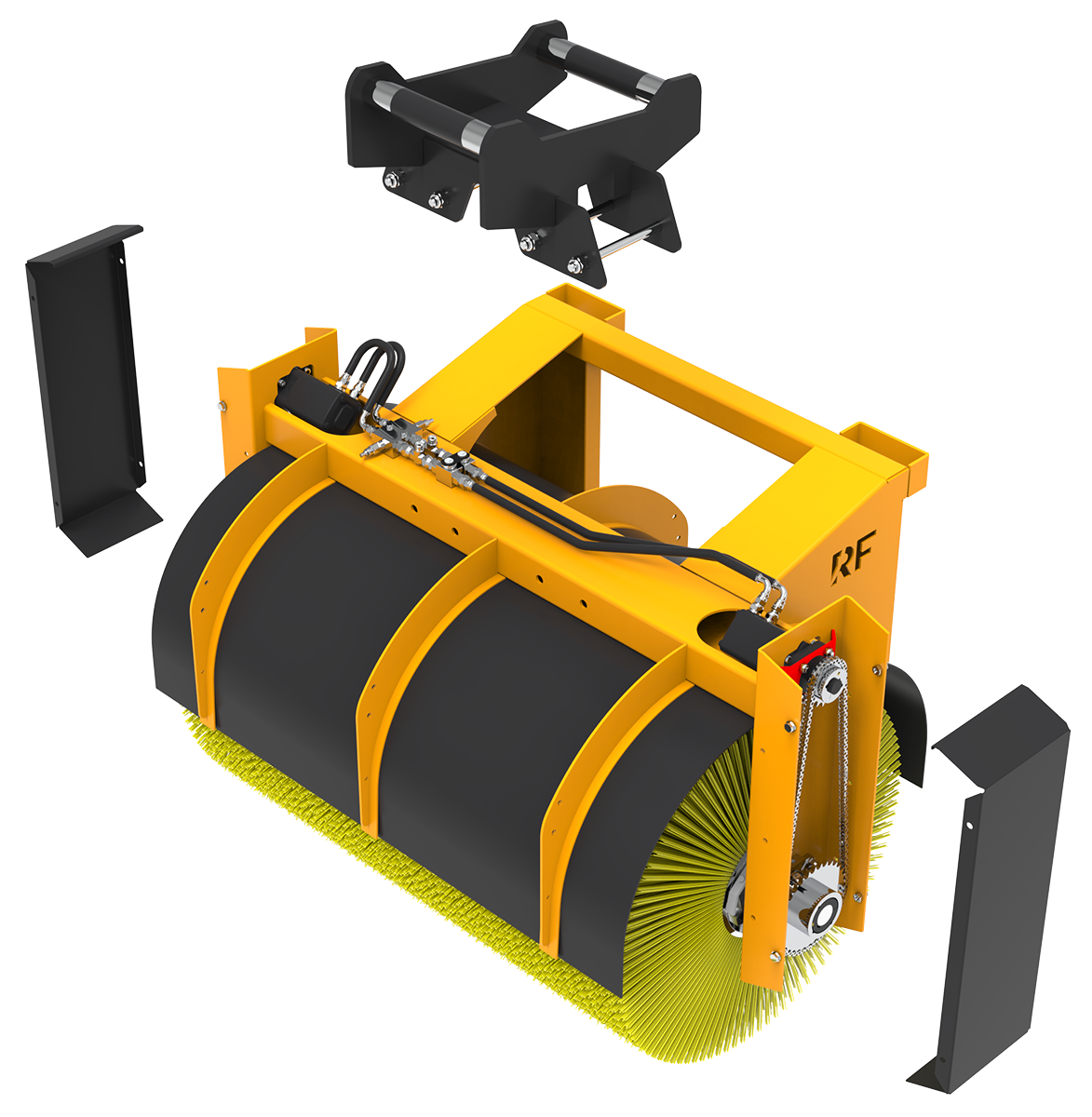

Bolt-on Bracket AGS SKB, Ballast roller, Sidewall, Rubber splash guard

Detailed description

Excavator Requirements:

Max pressure: 140 bar
Oil flow: 55-75 l/min*
Oil flow when sweeping snow: 70-80 l/min

*Refers to one engine, in case of two engines: Oil flow 110-150 l/min.

Downloads

SKB Sopvals Product Sheet 2020
pdf Download

Product list

Stocked item

SKB

190-14213-182-10

COMPL. SWEEPER SUNLINE SKB10 (1 drive unit)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 1000 mm, Weight: 280 kg, Bristle: 915 mm, 1 drive unit, Motor 250 ccm, 140 bar, 35-75 l/min

SKB

190-34213-182-10

COMPL. SWEEPER SUNLINE SKB10 (2 drive units)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 1000 mm, Weight: 280 kg, Bristle: 915 mm, 2 drive units, Motor 250 ccm, 140 bar, 70-150 l/min

SKB

190-14213-182-15

COMPL. SWEEPER SUNLINE SKB15 (1 drive unit)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 1500 mm, Weight: 330 kg, Bristle: 915 mm, 1 drive unit, Motor 250 ccm, 140 bar, 35-75 l/min

SKB

190-34213-182-15

COMPL. SWEEPER SUNLINE SKB15 (2 drive units)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 1500 mm, Weight: 330 kg, Bristle: 915 mm, 2 drive units, Motor 250 ccm, 140 bar, 70-150 l/min

SKB

190-14213-182-20

COMPL. SWEEPER SUNLINE SKB20 (1 drive unit)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 2000 mm, Weight: 380 kg, Bristle: 915 mm, 1 drive unit, Motor 250 ccm, 140 bar, 35-75 l/min

SKB

190-34213-182-20

COMPL. SWEEPER SUNLINE SKB20 (2 drive units)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 2000 mm, Weight: 380 kg, Bristle: 915 mm, 2 drive units, Motor 250 ccm, 140 bar, 70-150 l/min

SKB

190-34213-182-26

COMPL. SWEEPER SUNLINE SKB26 (2 drive units)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 2600 mm, Weight: 420 kg, Bristle: 915 mm, 2 drive units, Motor 250 ccm, 140 bar, 70-150 l/min

SKB

190-34213-182-30

COMPL. SWEEPER SUNLINE SKB30 (2 drive units)

Product Group

BRUSHES

Bracket

Add adapter

Additional/others

Bolt-on bracket AGS SKB additional

Description

Width: 3000 mm, Weight: 475 kg, Bristle: 915 mm, 2 drive units, Motor 250 ccm, 140 bar, 70-150 l/min
