Sleeper Layer with fastclip module RUS33 CLF

Handles sleepers from a stack or a trolley until placed and fastened under the rails

With the fastclip module (CLF), that handles Fastclip FC and FE fastenings, sleepers are clipped to the rail in the same operation as the laying. The Sleeper Layer is also available without the fastclip module, then the sleeper is placed on the ballast bed and fastened with manual fastening device.
1435 mm track gauge as standard.

Accessories:

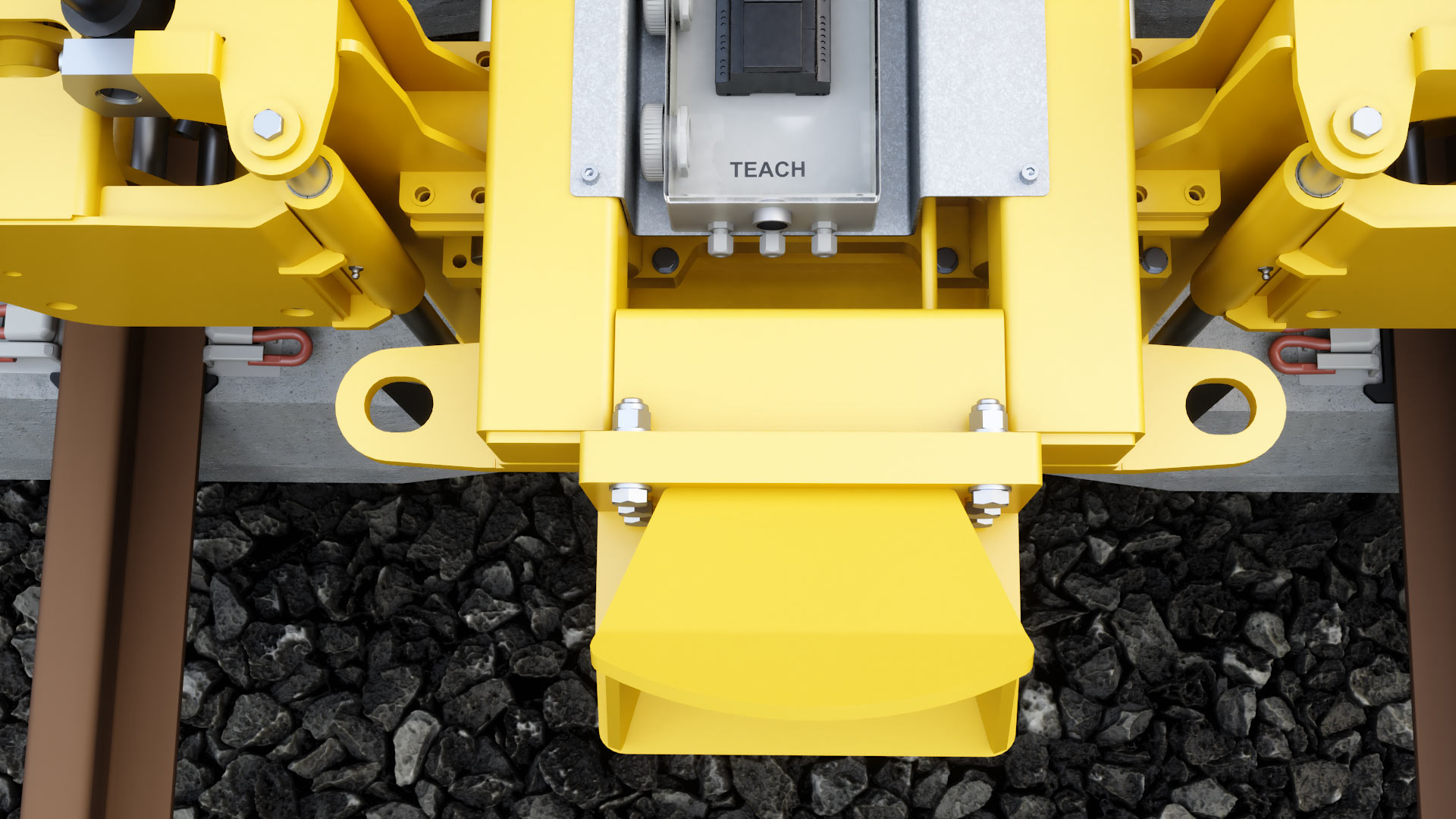

Range finder (laser) with lamp set for correct sleeper laying

25% more efficient track construction!

Create a safe workplace with fewer employees around the track. Only the machine driver and few ground staff needed for track construction. The concept fits well in tight areas where access routes can not be built or where no space is available for working machines beside the track. By using this concept you avoid driving machines in the finished ballast bed.

The concept for track construction consists of Rail Lift on wheels RLF, Sleeper Layer with fastclip module RUS33 CLF, that can handle Fastclip FE and FC fastenings together with 50 and 60 kg rail, and Sleepers Trolley SLF for transportation of sleepers.

Detailed description

Weight: 1960 kg (including transport stand 2060 kg)
Max load: 3 x 360 kg
Total weight incl load: 3040 kg
Pressure: Max 200 bar, Min 175 bar
Oil flow: 30-60 l/min

Machine requirements
Rec operating weight: 15-24 ton

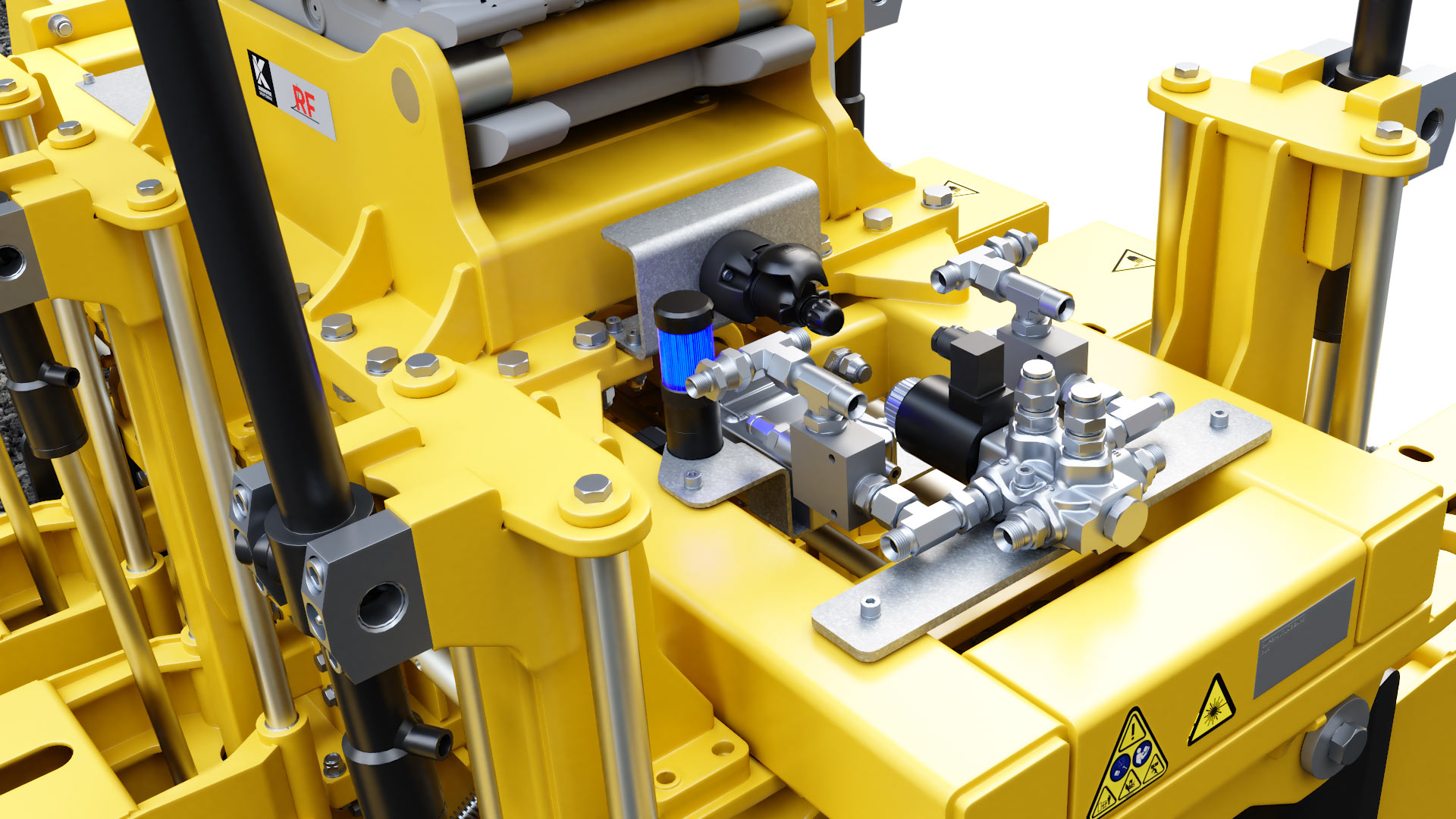

2 double-acting hydraulic functions, 1-2 electrical functions (1 electrical function standard, 1 electrical function – constant voltage to laser meter optional), indicator light for electric valve

Product list

Stocked item

RUS33-T

670-00228-920-00

FASTCLIP MODULE CLF FOR RUS33

Product Group

RAILWAY

Description

6 complete modules, Weight: 880 kg, (possible to retrofit)

RUS33-T

9-900-002

LASER RANGEFINDER FOR RUS33

Product Group

RAILWAY

Description

Distance measurer incl. Lamp indicator set and mounting details, (possible to retrofit)

RUS33

156-33000-000-00

SLEEPER LAYER PREPARED FOR FASTCLIP MODULE

Product Group

RAILWAY

Bracket

Add adapter

Weight Class

15-24

Additional/others

Bolt-on bracket AGS RUS additional

Description

Center gripping arms, Weight: 1080 kg, Number of sleepers lifted: 3

Related products & Accessories

Rail Lift on wheels RLF

Sleepers Trolley SLF

Ballast Tamper RST

Sleeper Layer RUS
