All current Vignole rails (flat-bottomed rail) with standard quality up to 900 N/mm² and profile size ”S7” to ”UIC 60” can be cut.
Vignole rail with special material properties exceeding 900 N/mm² or head-hardened are excluded.
The patented DemaPower cylinder provides up to 20% greater power. Large, heavy duty bearings result in reduced wear on bushings. Housing made of resistant special steel and comes with a built-in rotator.
Suitable for equipment with operating weights of 22 – 35 tons.
Excavator requirements:
Operating pressure: maximum 260 bar
Pump capacity: 150-250 l/min
RC30
308-00000-140-30
RAILWAY
22-35

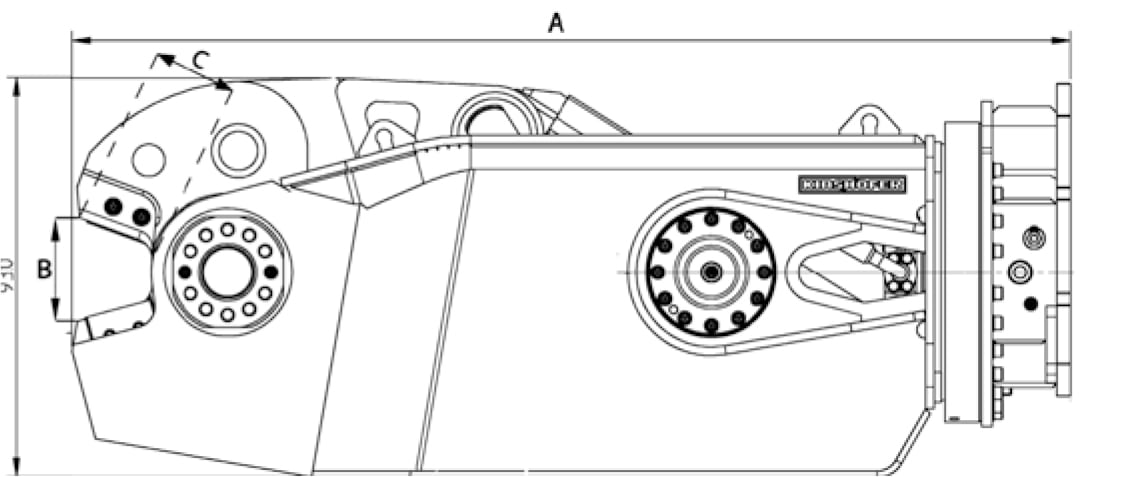

Bracket: Hole pattern , Length: 2334 mm, Jaw opening: 224 mm, Hydraulic pressure: 320 bar, Rec. oil flow: 150-250 l/min open/close, Cycle time: 2,0/2,3 s, Operating weight: 22-35 ton,
RC30
308-10000-140-30
RAILWAY
22-35
Bracket: Hole pattern , Length: 2334 mm, Jaw opening: 224 mm, Hydraulic pressure: 320 bar, Rec. oil flow: 150-250 l/min open/close, Cycle time: 2,0/2,3 s, Operating weight: 22-35 ton,
